Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install rear speed sensor.
> 451519 - REMOVING AND INSTALLING REAR SPEED SENSOR - SECTION ON "INSTALLING"
Depending on equipment:
Install coil spring or air spring bellows.

> 427219 - REMOVING AND INSTALLING COIL SPRING - SECTION ON "INSTALLING"

> 434319 - REMOVING AND INSTALLING AIR SUSPENSION BELLOWS - SECTION ON "INSTALLING"
Install rear brake disc.
> 465319 - REMOVING AND INSTALLING REAR BRAKE DISC - SECTION ON "INSTALLING"
Tighten screw for drive shaft -1- .

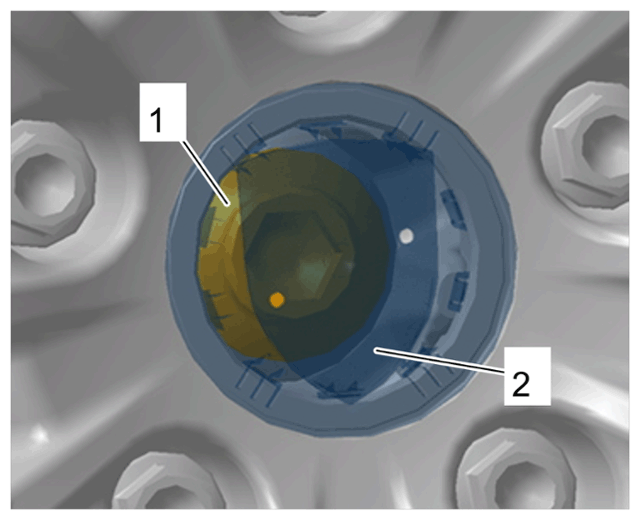

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shaft screw
1. 4.1 Raise the vehicle as far as required so that the wheel is not on the floor.
2. 4.2 Tighten screw on drive shaft -1- to the specified initial tightening torque and get a second mechanic to press the brake at the same time.
  > Initial - tightening 200 Nm (148 ftlb.)
3. 4.3 Lower the vehicle.
4. 4.4 Tighten screw on drive shaft -1- and also get a second mechanic to press the brake at the same time.
  > Final tightening 180°
5. 4.5 Fit hub cap -2- .
Perform suspension alignment.
> 449503 - PERFORMING FRONT + REAR SUSPENSION ALIGNMENT
