Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew drive shaft screw -1-  .

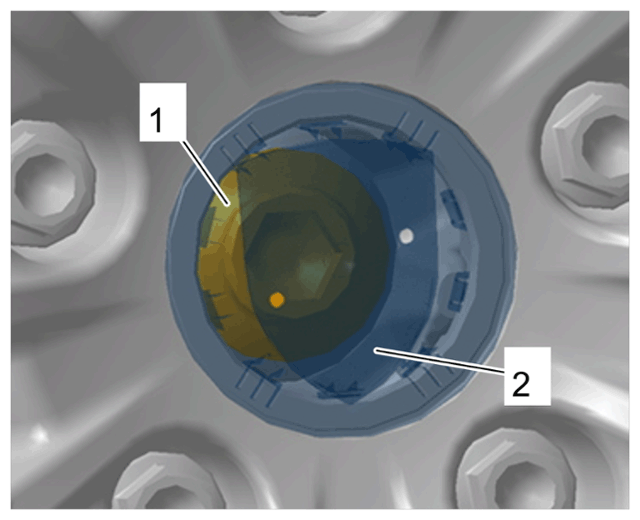

    G15154921Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft screw

    1. 1.1 Pull off hub cap -2-  using > 9229/1 - puller hook  .
    2. 1.2 Loosen screw on drive shaft -1-  and get a second mechanic to press the brake at the same time.
    3. 1.3 Unscrew drive shaft screw -1-  .
  2. Remove rear brake disc.

    > 465319 - REMOVING AND INSTALLING REAR BRAKE DISC - SECTION ON "REMOVING"

  3. Depending on equipment:

    Remove coil spring or air spring bellows.

    > 427219 - REMOVING AND INSTALLING COIL SPRING - SECTION ON "REMOVING"

    > 434319 - REMOVING AND INSTALLING AIR SUSPENSION BELLOWS - SECTION ON "REMOVING"

  4. Remove rear speed sensor.

    > 451519 - REMOVING AND INSTALLING REAR SPEED SENSOR - SECTION ON "REMOVING"
