Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | De... | Type | Basic v... | Toleran... | Toleran... |
|---|---|---|---|---|---|

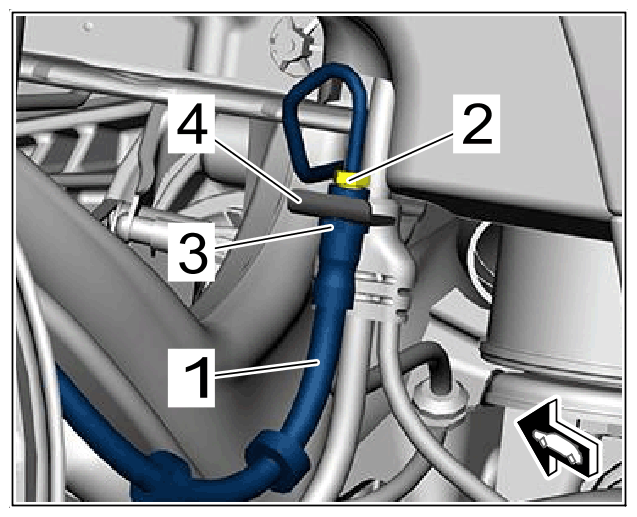

| Rear brake line on rear brake hose | Item 2 | Tightening torque | 14 Nm | ||
|
Brake hose |
|||||
| Rear axle housing, front to body | M14 x 1.5 x 135 thread/always replace screws following removal | Initial tightening | 115 Nm | ||
| Rear axle housing, front to body | M14 x 1.5 x 135 thread/always replace screws following removal | Final tightening | + 90° | ||
| Rear axle housing, rear to body | M12 x 1.5 x 145 thread/always replace screws following removal | Initial tightening | 115 Nm | ||
| Rear axle housing, rear to body | M12 x 1.5 x 145 thread/always replace screws following removal | Final tightening | + 90° | ||
| Shock absorber to wheel bearing housing | M14 x 1.5 x 90 thread/always use new screw or bolt following removal | Initial tightening | 150 Nm | ||
| Shock absorber to wheel bearing housing | M14 x 1.5 x 90 thread/always use new screw or bolt following removal | Final tightening | + 180° |
