Removing Crankshaft Sealing Ring - Belt Side

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

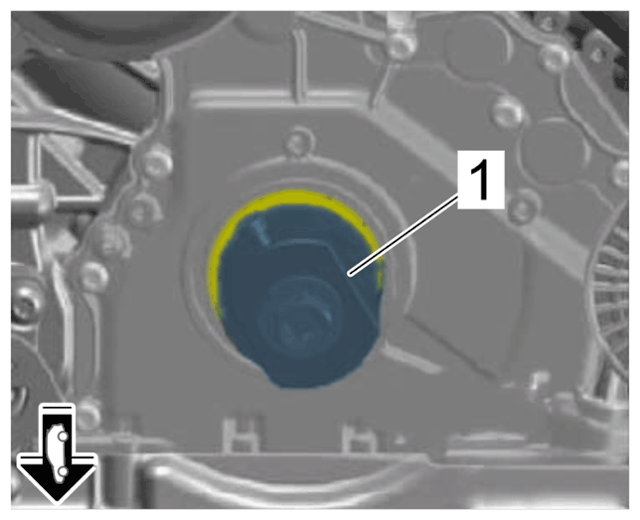

Remove crankshaft sealing ring (on belt side) using > T40019 - sealing ring extractor-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing ring extractor
1. 1.1 Set the inner part of the > T40019 - sealing ring extractor-1- so that it is flush with the outer part and lock inner part using the knurled screw.
2. 1.2 Oil the threaded head of the > T40019 - sealing ring extractor-1- , fit it and use sufficient force to screw it as far as possible into the sealing ring.
3. 1.3 Loosen the knurled screw and turn the inner part against the crankshaft until the crankshaft sealing ring (belt side) is removed.
4. 1.4 > T40019 - Sealing ring extractor-1- must be clamped on the flattened areas in a vice. Then, remove crankshaft sealing ring (on belt side) using pliers.
Carefully clean running and sealing faces.
