Removing Drive Plate
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- → Protect components from dirt and contamination. → Clean or replace dirty components.

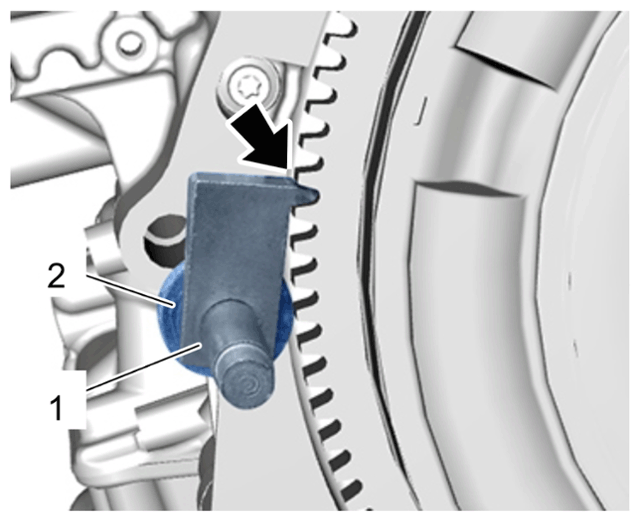

- Position the > 10-201 - - holder-1-
with two washers -2-
on the drive plate as shown -Arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
on drive plate
- Remove the drive plate -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

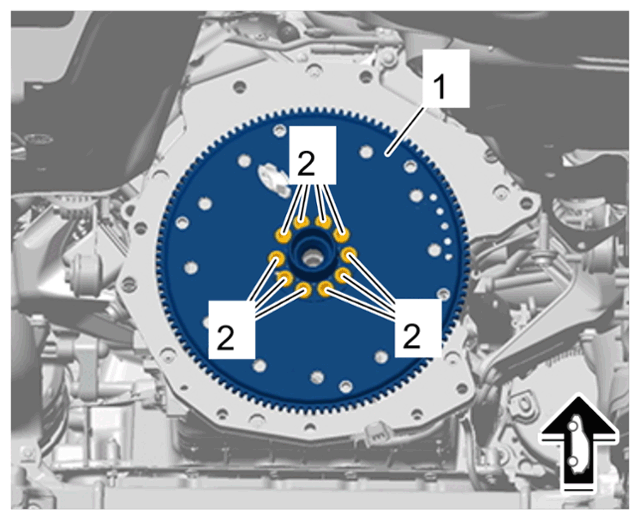

Drive plate
- 2.1
Unscrew screws -2-
.
- 2.2
Remove the drive plate -1-
and rotor for the Hall sender.
