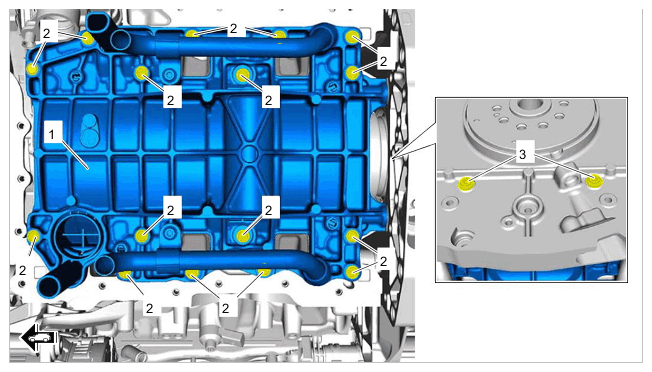

- Install oil windage tray -1-
.
Oil windage tray
- 1.1 Position oil windage tray -1- on cylinder block.
- 1.2 Replace screws for oil windage tray -2 and 3- .
- 1.3 Fit new
screws securing oil windage tray to cylinder block -2-
and tighten in diagonally opposite sequence.
M6 x 18 (3 ea.):
- Initial tightening 3 Nm (2 ftlb.)
- Final tightening + 90°
M6 x 30 (13 ea.):
- Initial tightening 3 Nm (2 ftlb.)
- Final tightening + 90°
- 1.4 Tighten new
screws securing chain housing cover to oil windage tray -3-
.
- Initial tightening 3 Nm (2 ftlb.)
- Final tightening + 90°
- Install oil guide housing.
- Removing and installing oil guide housing (V6 Turbo)
- Install cylinder head.
- Removing and installing cylinder head
