Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Remove cylinder head.
- Removing and installing cylinder head
- Remove oil guide housing.
- Removing and installing oil guide housing (V6 Turbo)
- Remove oil windage tray
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

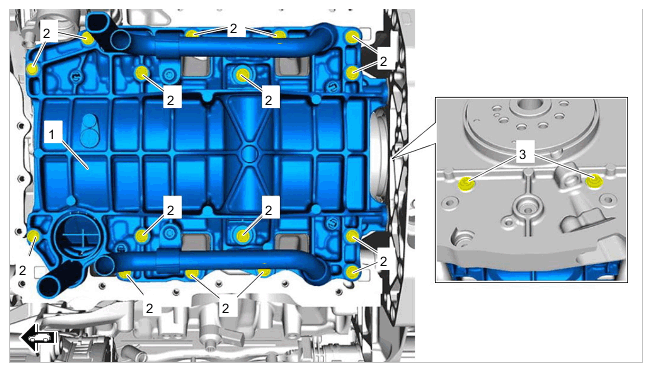

Oil windage tray
- 3.1
Unscrew screws for oil windage tray -2 and 3-
.
- 3.2
Remove oil windage tray -1-
from cylinder block.
