Measuring Cylinder Bore
WARNING: This page is about a different variant/trim than selected.
- Using the cylinder gauge VAS 6078,
take measurements as shown > Diagram for measuring cylinder bore
at three points in the cylinder, crosswise in transverse direction A
and in longitudinal direction B.

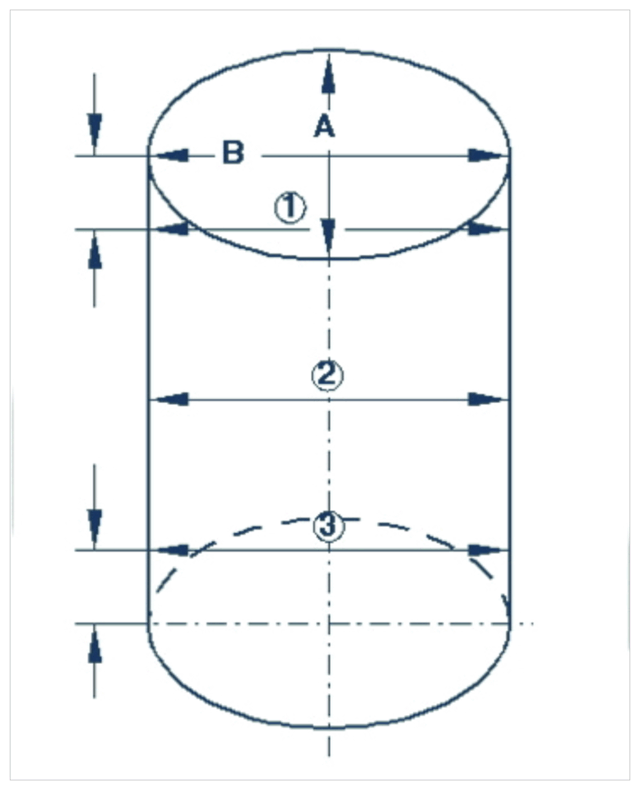

Diagram for measuring cylinder bore
Cylinder bore New in mm Maximum permitted deviation from nominal measurement in mm Note Nominal measurement 84.510 ± 0.005 0.08 Measure cylinder bore depth of 50 mm.
