Disassembling Rear Shock Absorber (Conventional)

WARNING: This page is about a different variant/trim than selected.
  1. Pull protection cap off the spring-strut mount.
  2. Unscrew nut using ratchet -1-  and > T10001 - shock absorber set-2 to 4-  and counter at the hexagon on the piston rod at the same time.

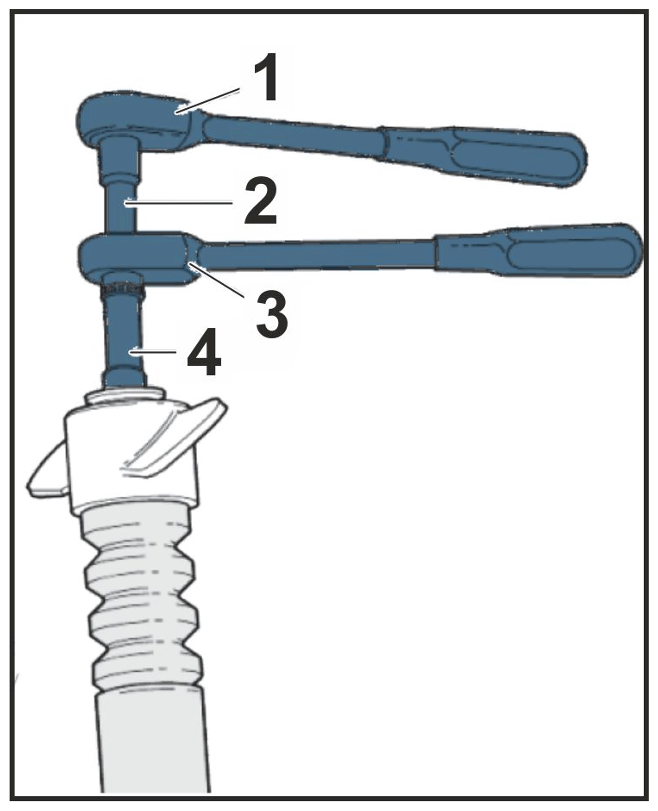

    G15156119Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nut on piston rod (conventional)

    1. Ratchet (commercially available)
    2. T10001/9  Extension with counter-hold tool
    3. T10001/11  Change-over ratchet
    4. T10001/1  Socket-wrench insert
  3. Remove spring-strut mount with rubber stop and boot.
  4. Pull rubber stop out of the spring-strut mount and boot.
