Remove Rear Shock Absorber

WARNING: This page is about a different variant/trim than selected.

CAUTION: Wheel carrier raised incorrectly

Risk of squashing
Risk of damage to components
→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Recommendation for workshops replacing shock absorbers/spring dampers:

Dampers can be replaced separately up to a mileage of 30, 000 km or 3 years.
If the mileage is > 30, 000 km or the components are more than 3 years old, we recommend replacing them in pairs.

Lift up wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for support T10149
1. 1.1 Turn the wheel hub so that a bore for a wheel bolt is at the top.

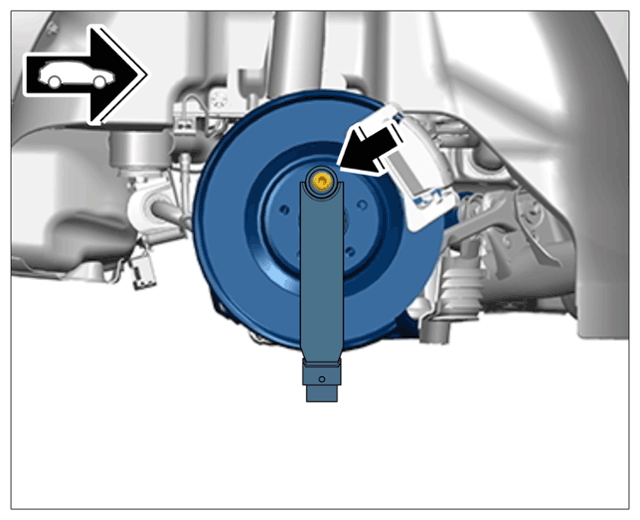

2. 1.2 Secure > T10149 - support to the wheel hub using a wheel bolt -Arrow- .
3. 1.3 > T10149 - support must be inserted into the > VAS 6931 - transmission and engine jack.
4. 1.4 Lift up wheel bearing housing.
Only for vehicles with PASM:

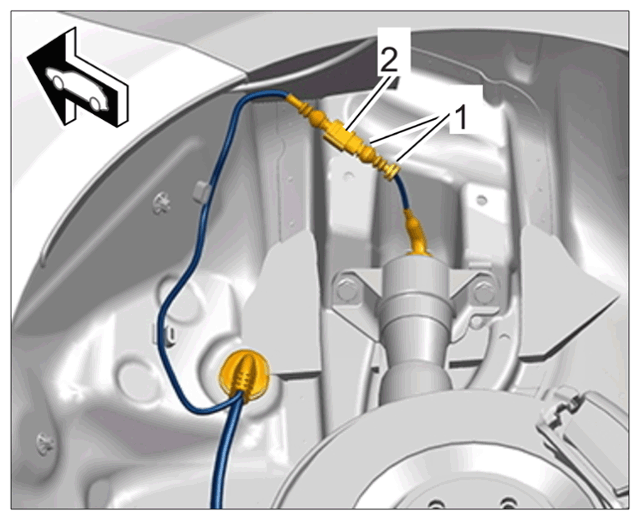

Disconnect PASM line from bracket -1- and release and disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for PASM

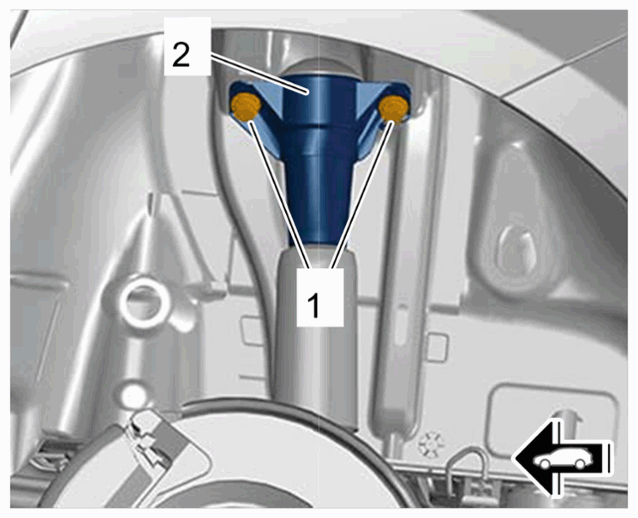

Unscrew screws -1- at the top of shock absorber -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper shock-absorber mount

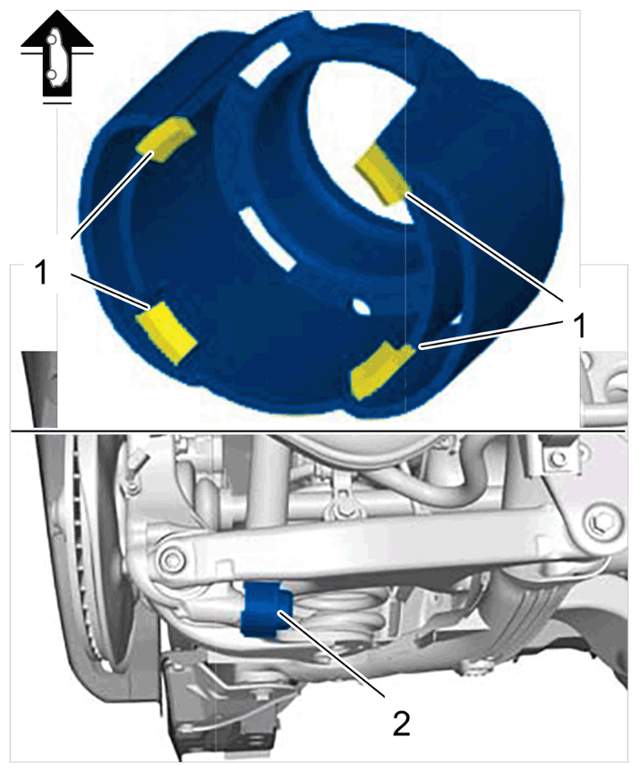

Release locking lugs -1- and remove stone guard -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stone guard
Remove shock absorber -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower shock-absorber mount

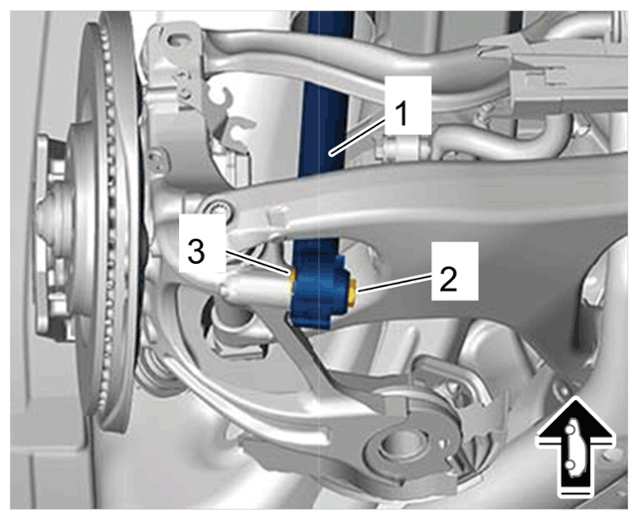

1. 5.1 Unscrew screw -2- and remove washer -3- .
2. 5.2 Remove shock absorber -1- by pulling it downwards.
