Removing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Remove connecting link for anti-roll bar -1-  .

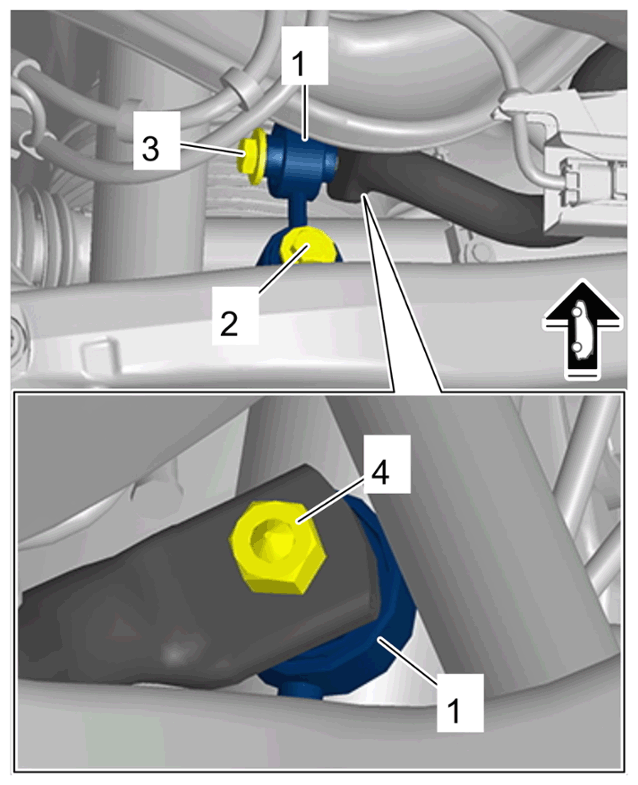

    G15156100Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting link for anti-roll bar

    1. 1.1 Unscrew screw securing connecting link for anti-roll bar to lower trailing arm -2-  .
    2. 1.2 Unscrew screws securing connecting link for anti-roll bar to anti-roll bar -3-  and counter at nut -4-  .
    3. 1.3 Remove connecting link for anti-roll bar -1-  .
