Removing Rear Anti-Roll Bar

Information

• The anti-roll bar can only be removed together with connecting links.

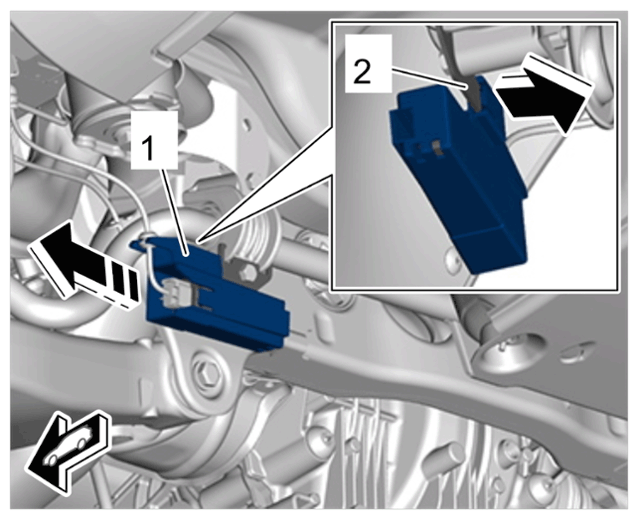

1. Disconnect control unit for Tyre Pressure Monitoring (TPM) -1-  from the holder -2-  on the left anti-roll bar clamp.
   1. 1.1 Release locking mechanism on control unit for Tyre Pressure Monitoring (TPM) in -direction of arrow-  .
   2. 1.2 Disconnect control unit for Tyre Pressure Monitoring (TPM) -1-  from holder -2-  in -direction of arrow-  and secure it at a suitable position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control unit for Tyre Pressure Monitoring (TPM) on holder

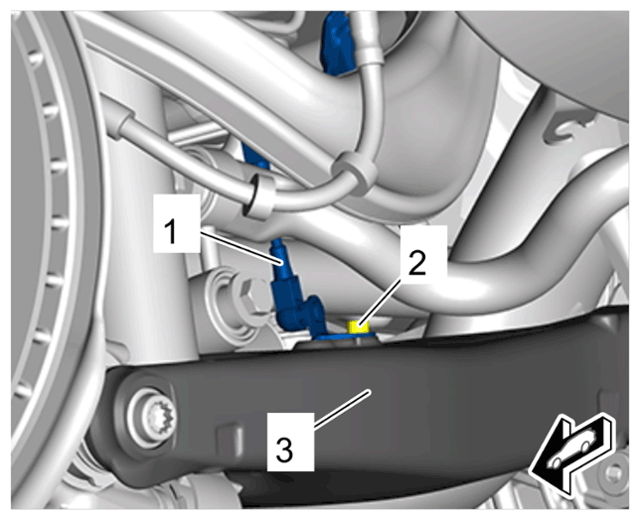

2. Unscrew screws -2-  for the level sensors -1-  on the lower trailing arm -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for level sensor on lower trailing arm

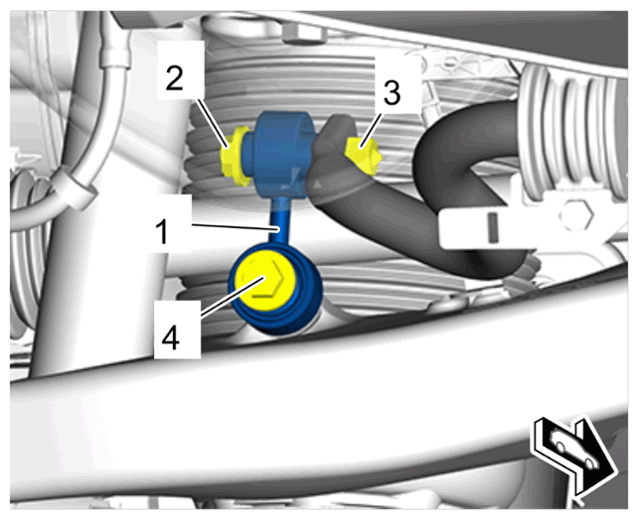

3. Disconnect connecting links for anti-roll bar -1-  from lower trailing arm.
   1. 3.1 Loosen nut -3-  and counter at screw -2-  at the same time.
   2. 3.2 Unscrew screw -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connecting link for anti-roll bar

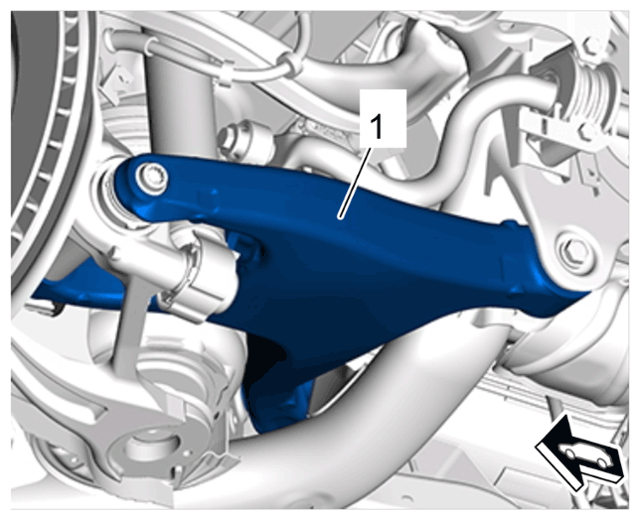

4. Wrap a suitable cloth around the lower trailing arm -1-  to prevent damage to the anti-roll bar and trailing arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower trailing arm

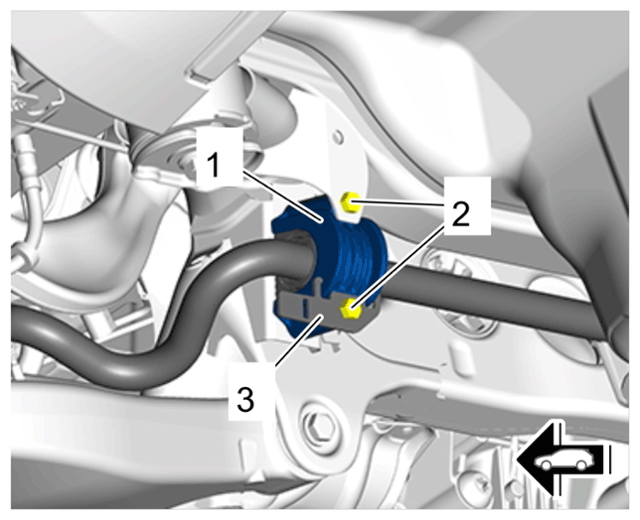

5. Remove anti-roll bar clamps -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear anti-roll bar clamp

   1. 5.1 Unscrew screws -2-  on the anti-roll bar clamps -1-  .
   2. 5.2 Remove holder for control unit for Tyre Pressure Monitoring (TPM) -3-  from the left anti-roll bar clamp -1-  .
   3. 5.3 Remove anti-roll bar clamp -1-  .

   Information

   Do not damage the paintwork on the anti-roll bar during removal and installation.

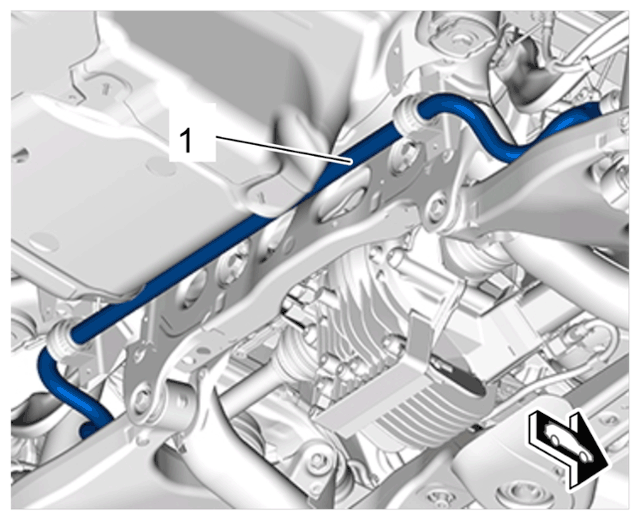

6. Remove the rear anti-roll bar -1-  with anti-roll bar connecting link by pulling it down and out. When doing this make sure that the rear level sensors are not damaged.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar
