WM, 427219 Remove And Install Coil Spring: Tools

Information

To remove/install the coil spring, use the > VAS 6907 - spring tensioning system  and > VAS 6274/12 - supplement set for spring tensioning system.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Greasing the spindle

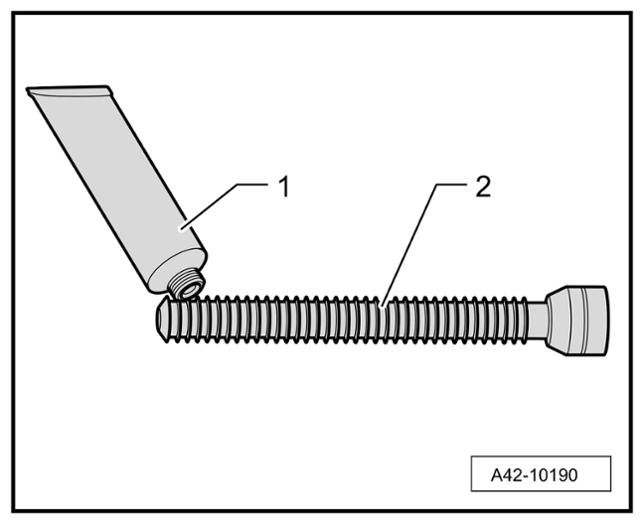

• Before removing and installing each spring, grease the spindle -2- at - the front with a light coating of the supplied grease -1-  .
• Only grease the spindle using the supplied lubricant. Other types of lubricant will damage the spindle.

Information

Inserting the spreader device prevents the axle from moving upwards when tensioning the coil spring and this makes it easier to install.

• Always remove the spreader device from the vehicle after installing the coil spring.

Information

Before tensioning the coil spring, check that the pressure plates are seated correctly.

Information

• The> VAS 6907 - spring tensioning system is - required for removing and installing the coil springs.

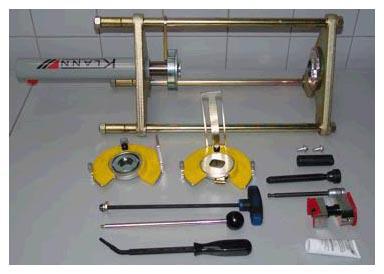

Tool overview for spring tensioning system:  > VAS 6907 - spring tensioning system

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

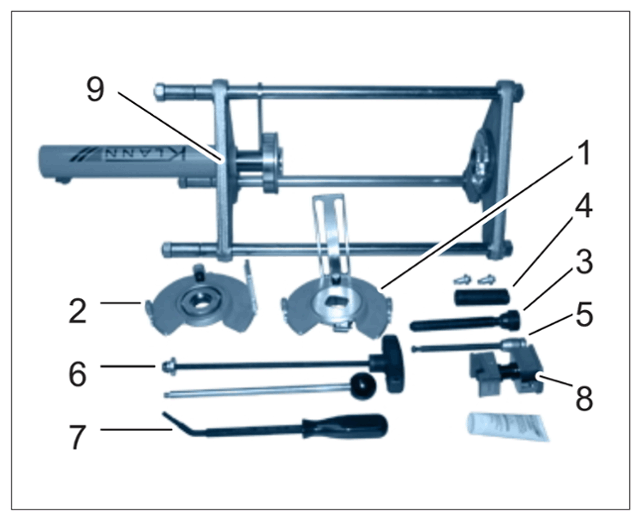

Spring tensioning system VAS 6907

1. Pressure plate with locking mechanism VAS 6907/1
2. Pressure plate with pivot bearing VAS 6907/2
3. Spindle VAS 6907/3
4. Piston VAS 6907/4
5. Socket wrench VAS 6907/5
6. T-bar wrench VAS 6907/6
7. Holding wrench VAS 6907/7
8. Spreader device VAS 6907/8

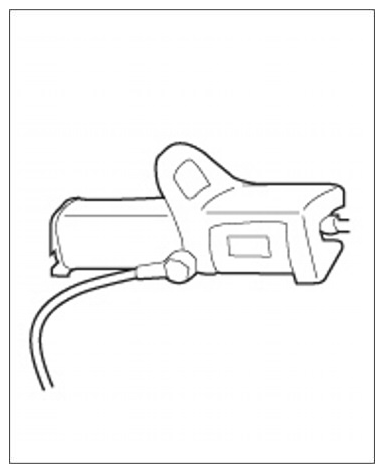

9. Hydraulic tensioning device VAS 6907/9

Additional supplement set for spring tensioning system:  > VAS 6274/12 - supplement set for spring tensioning system

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

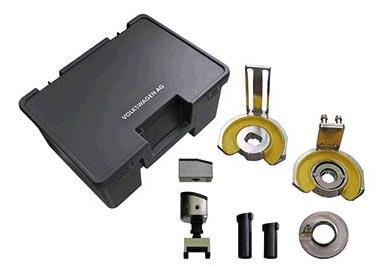

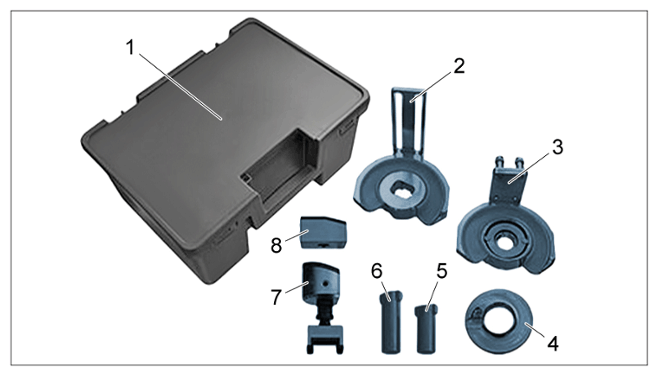

Supplement set VAS 6274/12

1. Tool case VAS 6274/12
2. Pressure plate with latch → VAS 6274/12-2
3. Pressure plate with pivot bearing → VAS 6274/12-1
4. Spring support → VAS 6274/12-3
5. 69 mm piston → VAS 6274/12-6
6. 89 mm piston → VAS 6274/12-7
7. Spreader device → VAS 6274/12-4
8. Support plate for spreader device → VAS 6274/12-5

1. Depending on vehicle equipment, use the appropriate tool parts.
