Tools And Materials

WARNING: This page is about a different variant/trim than selected.

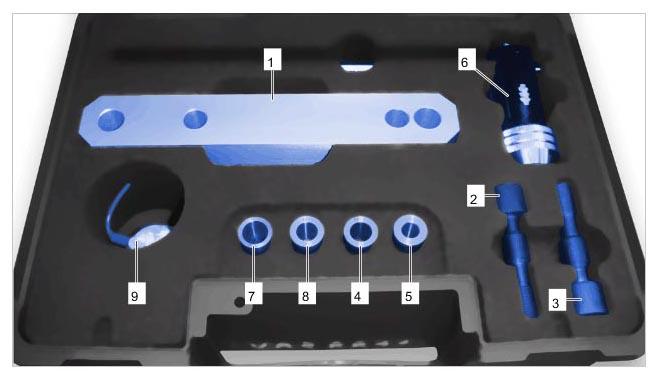

G15156035Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

  1. Assembly aid
  2. Fastening screw, M12
  3. Fastening screw, M14
  4. Guide sleeve, M12 - internal diameter: 12.25 mm
  5. Guide sleeve, M12 - internal diameter: 10.00 mm
  6. Threading die holder
  7. Guide sleeve, M14 - internal diameter: 14.50 mm
  8. Guide sleeve, M14 - internal diameter: 12.20 mm
  9. Cutting oil

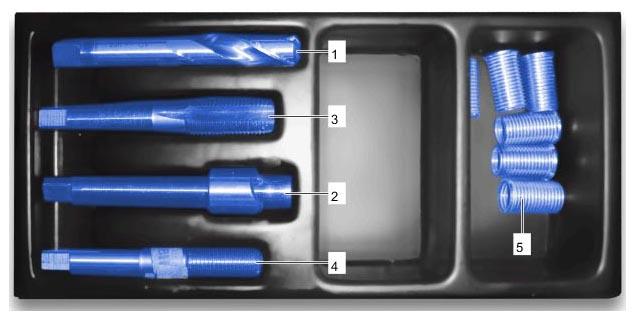

G15156036Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Drill bit
  2. Seat miller
  3. Tap
  4. Screw-in tool
  5. Threaded bush, M12
