Removing Rear Drive Shaft
WARNING: This page is about a different variant/trim than selected.
Information
Do not leave drive shafts hanging from the joint stop. Hold the drive shaft or tie it up if necessary.
Information
- The help of another person is required.

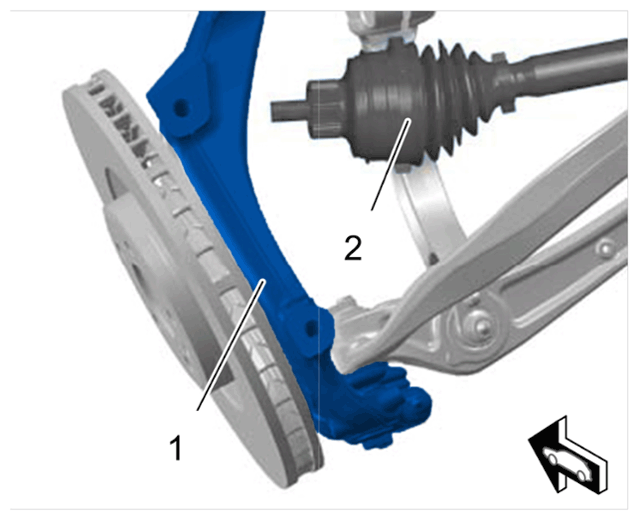

- Tilt wheel bearing housing -1-
down slightly. Have another person guide the drive shaft -2-
carefully out of the wheel bearing housing.
Drive shaft

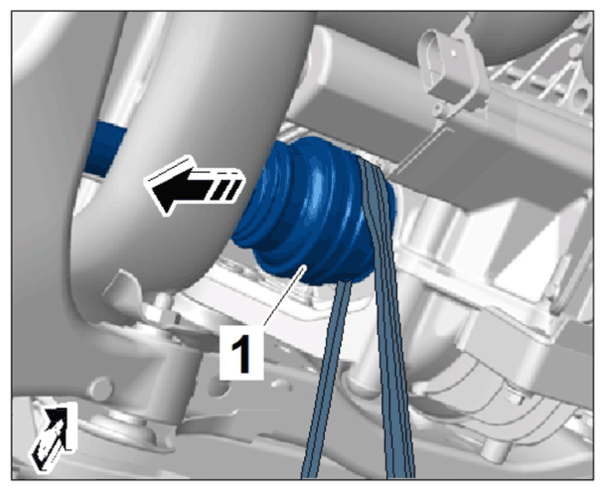

- Lever the drive shaft -1- carefully out of the rear-axle transmission housing in -direction of arrow- , using 2 mounting levers.
Drive shaft on transmission side
IMPORTANT:
Make sure the drive shaft is held securely! In the event of certain, unfavourable tolerances, the drive shaft might slip out.
