Replacing Bearing For Trailing Arm (On Wheel Bearing Housing)

WARNING: This page is about a different variant/trim than selected.

WARNING: Mechanical, hydraulic or pneumatic press

Risk of squashing
→ Read specific safety information for the press.

→ Check that the press is working perfectly before use, particularly the safety components.

Information

IMPORTANT: Bearing is tensioned when pressing it out!

Remove bearing.

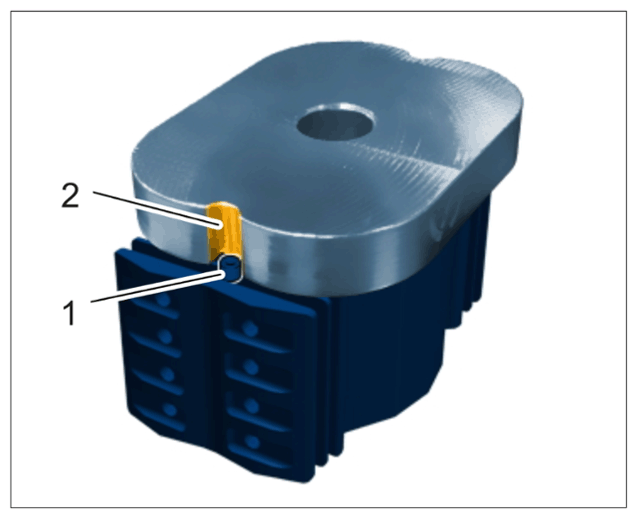

1.1 Fit pressure plate T40184/2 on the bearing and make sure that the nubs -1- engage in the grooves -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning pressure plate

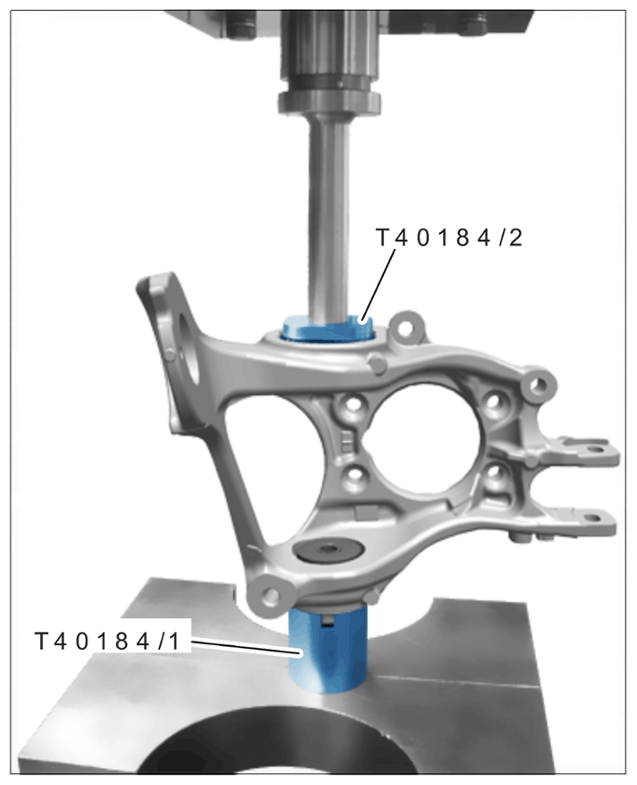

1.2 Position wheel bearing housing on pressure piece T40184/1 .
1.3 Press out bearing using pressure plate T40184/2 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Arrangement of tools: Press-out process

Information

The bearing is pre-tensioned by pressing in the pressure piece T40184/3 (inner wall of the pressure piece is conical). This is necessary so that the bearing can be pressed into the bearing sleeve.

Install new bearing.

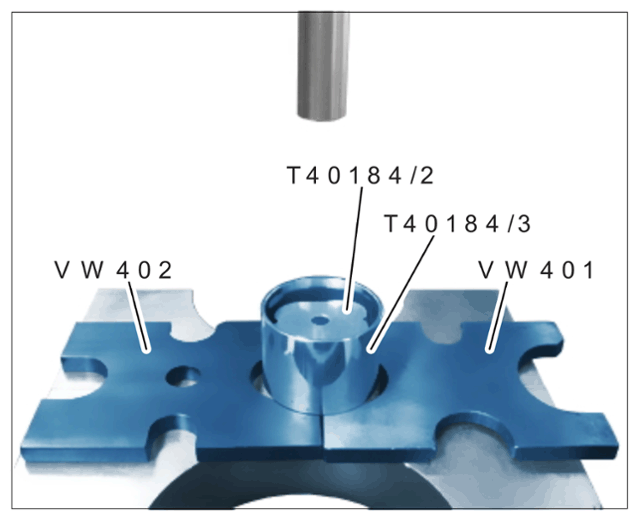

2.1 Position pressure piece T40184/3 on > VW401 - Pressure plate and > VW402 - Pressure plate.

2.2 Using pressure plate T40184/2 , press bearing into pressure piece T40184/3 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press-in process for pressing bearing into pressure piece

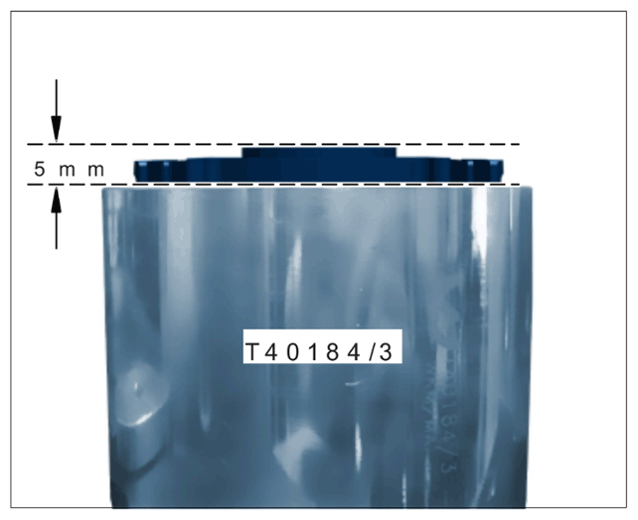

After pressing it in, the bearing must project by approx. 5 mm at the lower side of the pressure piece T40184/3 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dimension for pressing into pressure piece

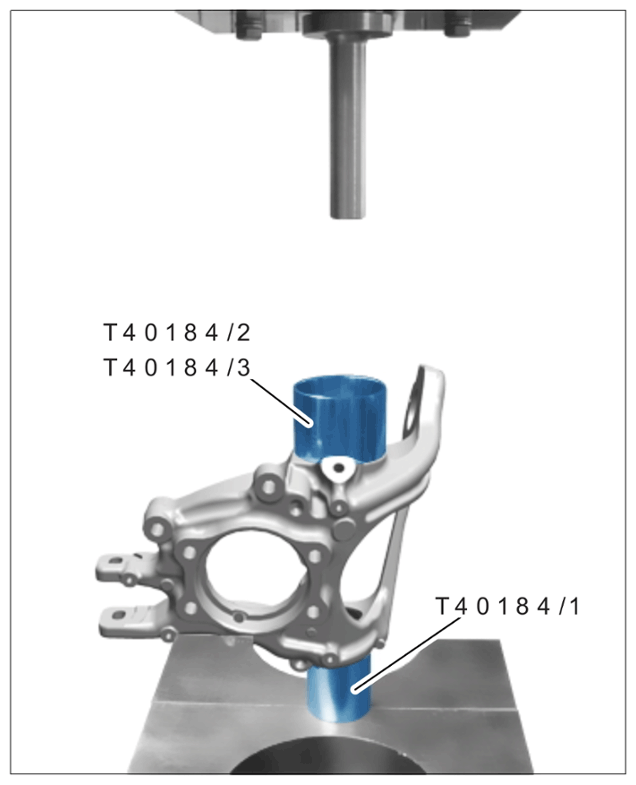

2.3 Position wheel bearing housing on pressure piece T40184/1 .

2.4 Position bearing on wheel bearing housing using pressure piece T40184/3 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Arrangement of tools: Press-in process

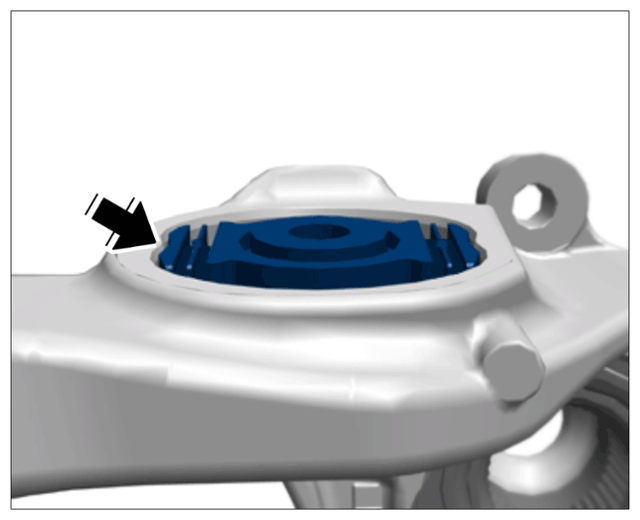

2.5 Press bearing as far as required into the wheel bearing housing using pressure plate T40184/2 until it is flush with the edge -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of bearing
