Component Information

WARNING: This page is about a different variant/trim than selected.

The > T40184 - assembly tool  as well as the > VW401 - Pressure plate  and > VW402 - Pressure plate  are required in order to replace the bearing.

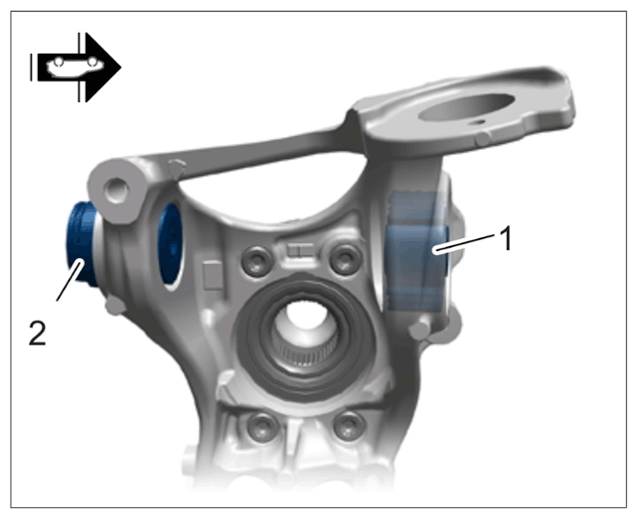

G15155984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel bearing housing

  1. Bearing can be replaced.
  2. Bearing cannot be replaced. Replace the wheel bearing housing if it is damaged

    > 425219 - REMOVING AND INSTALLING REAR WHEEL BEARING HOUSING
