Removing Rear Tie Rod

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear tie rod -1-  .

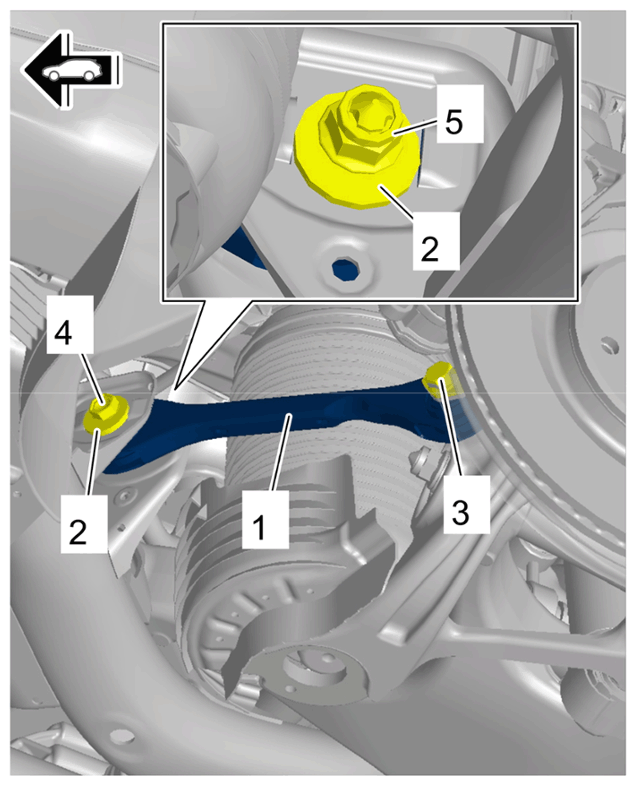

    G15155965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear tie rod

    1. 1.1 Mark position of the eccentric adjuster for toe adjustment -2-  for re-installation.
    2. 1.2 Unscrew screw securing rear tie rod to wheel bearing housing -3-  .
    3. 1.3 Unscrew screw securing rear tie rod to rear axle housing -4-  using > T40183 - interchangeable head  and counter at the nut -5-  at the same time.
    4. 1.4 Remove rear tie rod -1-  .
