Installing Front Strut
WARNING: This page is about a different variant/trim than selected.

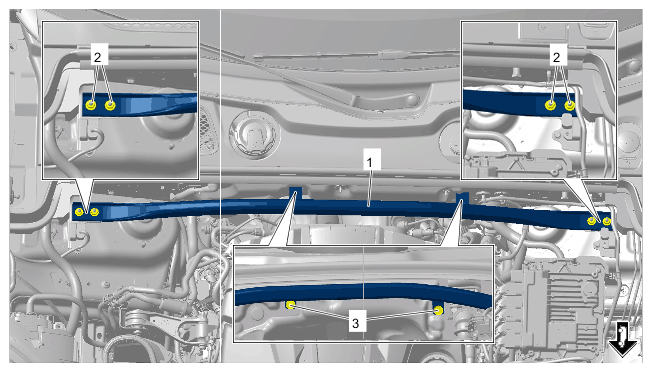

- Install front strut -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front strut
- 1.1 Move front strut -1-
into installation position.
- 1.2 Screw on and tighten nuts -2-
.
> Tightening torque 30 Nm
- 1.3 Screw on and tighten nuts -3-
.
> Tightening torque 2 Nm
