Component Overview
WARNING: This page is about a different variant/trim than selected.

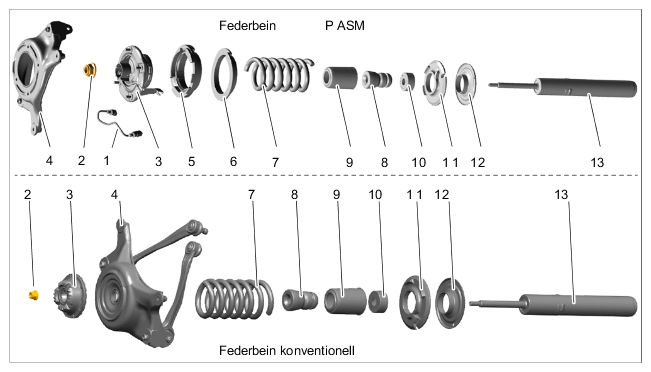

Overview of spring struts
| 1 | PASM line (PASM only) |
| 2 | Hexagon nut |
| 3 | Spring-strut mount |
| 4 | Mounting saddle (on conventional spring struts, the mounting saddle is integrated in the spring strut, while on spring struts with PASM, the mounting saddle is screwed to the bearing -3- ). |
| 5 | Insert |
| 6 | Upper concave support |
| 7 | Coil spring |
| 8 | Rubber stops |
| 9 | Protective sleeve |
| 10 | Shock absorber cap |
| 11 | Lower concave support |
| 12 | Spring washer |
| 13 | Vibration damper |
