Disassembling Front Spring Strut

Information

Recommendation for workshops replacing shock absorbers/spring dampers:

• Dampers can be replaced separately up to a mileage of 20, 000 mls (30, 000 km) or 3 years.
• If the mileage is > 20, 000 miles (30, 000 km) or the components are more than 3 years old, we recommend replacing them in pairs.

Information

• Observe the correct allocation (engine variant/chassis variant) when installing new coil springs and/or shock absorbers.
• Springs must only be replaced in pairs.
• When replacing springs, the spring plates must also be replaced.

Information

The front spring strut is disassembled and assembled using the tool > VAS 6908 - Stationary Spring Compressor  .

Before inserting the spring strut, the tool > VAS 6908 - Stationary Spring Compressor  must be set up and adjusted in accordance with the operating instructions provided by the manufacturer.

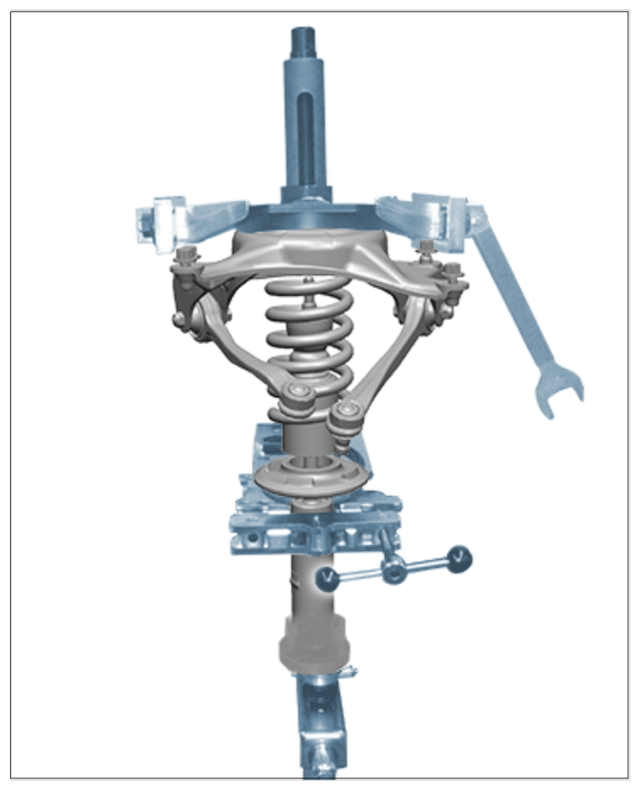

1. Insert spring strut in > VAS 6908 - stationary spring tensioning device  > Spring strut in spring tensioning device (conventional spring strut shown)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring strut in spring tensioning device (conventional spring strut shown)

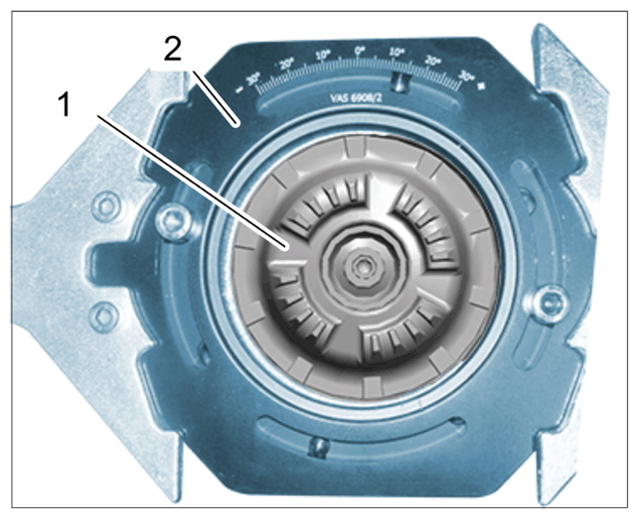

2. Applies only to conventional spring strut:

   Align chamfer of the spring strut mount -1-  so that it is concentric with respect to the mounting saddle -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring strut alignment (conventional)

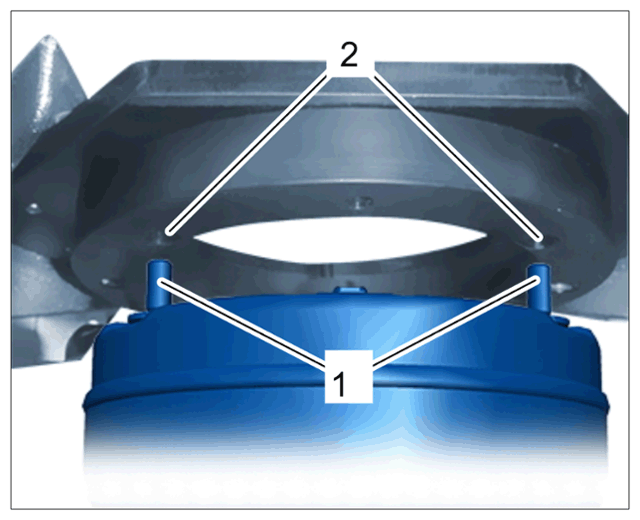

   Applies only to PASM spring strut:

   Insert threaded bolts -1-  of the spring strut into the bores -2-  on the mounting saddle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring strut alignment (PASM)

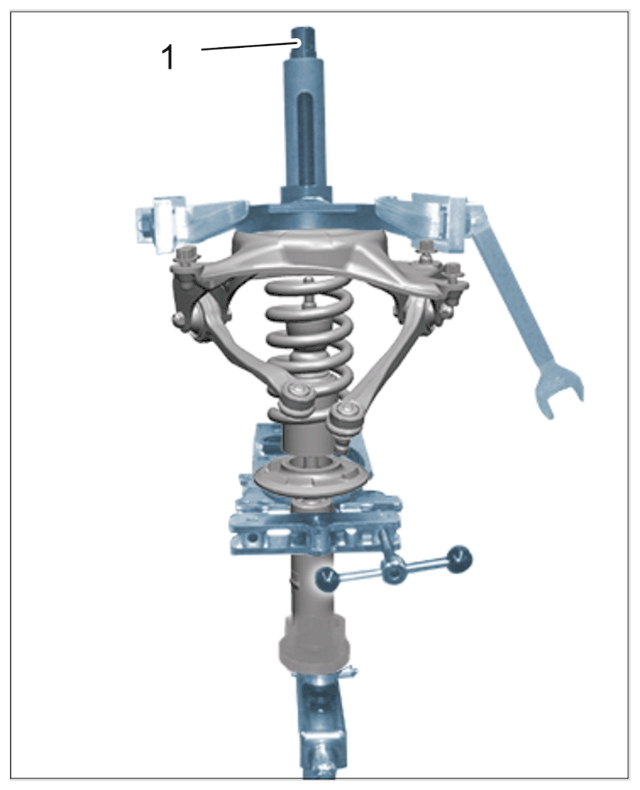

3. Pre-tension spring strut using drive nut -1-  until the tension on the piston rod is relieved.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pre-tensioning spring strut

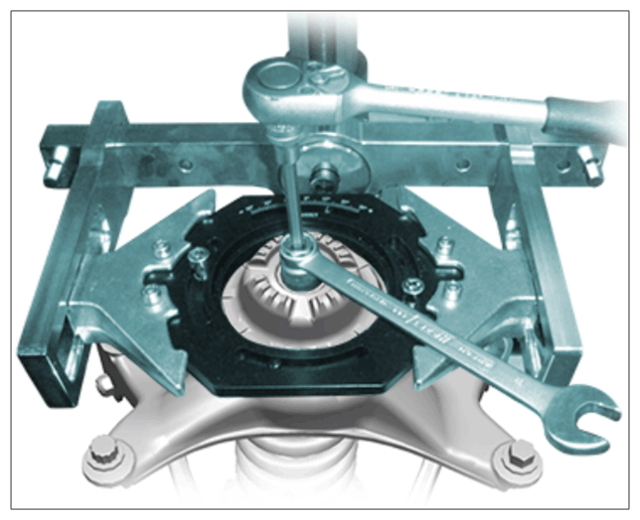

4. Unscrew nut on piston rod > Nut on piston rod (illustration by way of example)  . Use > 3353 - socket-wrench insert  on PASM spring struts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Nut on piston rod (illustration by way of example)

5. Relieve tension on > VAS 6908 - stationary spring tensioning device  completely using the drive nut and remove all components from the piston rod.
