Installing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

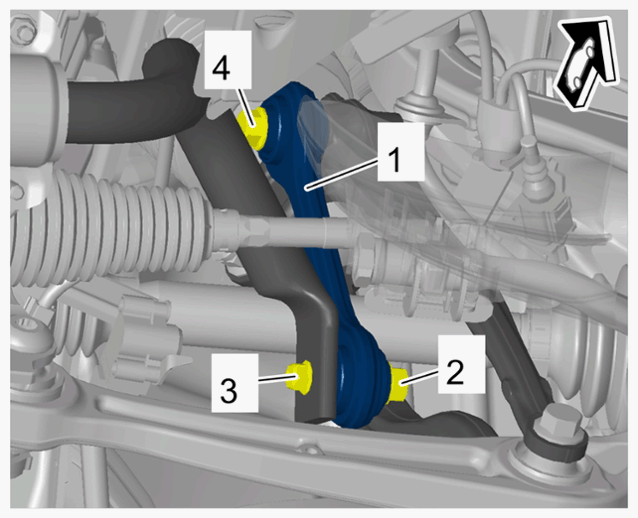

Connecting link for anti-roll bar
1. 1.1 Use new screws and nuts securing connecting link for anti-roll bar.
2. 1.2 Fit and tighten nut -3- securing connecting link -1- to anti-roll bar and counter at the screw -2- .
  > Initial - tightening 40 Nm (30 ftlb.)

  > Final tightening + 90°
3. 1.3 Tighten screw -4- securing connecting link -1- to spring strut fork.
  > Initial - tightening 40 Nm (30 ftlb.)

  > Final tightening + 90°
