Tools And Materials
WARNING: This page is about a different variant/trim than selected.

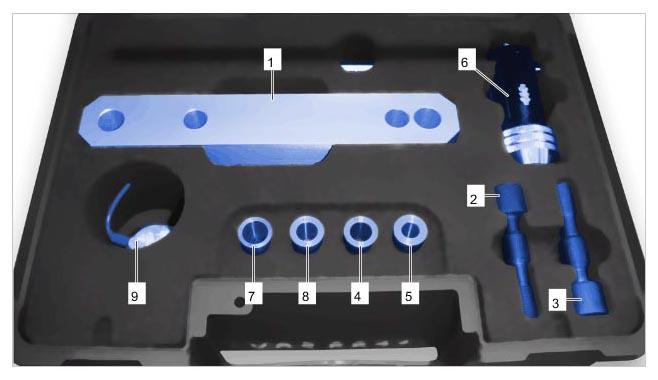

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Assembly aid |
| 2 |
Fastening screw, M12 |
| 3 |
Fastening screw, M14 |
| 4 |
Guide sleeve, M12 - internal diameter: 12.25 mm |
| 5 |
Guide sleeve, M12 - internal diameter: 10.00 mm |
| 6 |
Threading die holder |
| 7 |
Guide sleeve, M14 - internal diameter: 14.50 mm |
| 8 |
Guide sleeve, M14 - internal diameter: 12.20 mm |
| 9 |
Cutting oil |

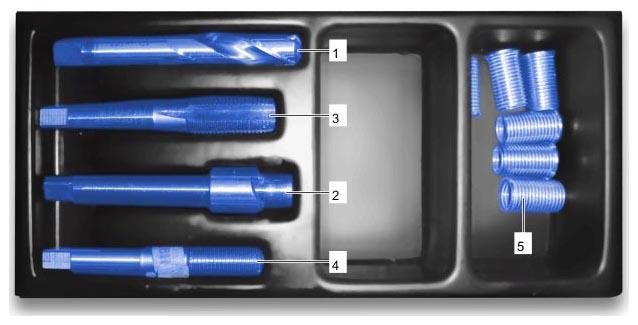

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Drill bit |
| 2 |
Seat miller |
| 3 |
Tap |
| 4 |
Screw-in tool |
| 5 |
Threaded bush, M14 |
