Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install front speed sensor.
> 451119 - REMOVING AND INSTALLING FRONT SPEED SENSOR - SECTION ON "INSTALLING"
Install front brake disc.
> 465019 - REMOVING AND INSTALLING FRONT BRAKE DISC - SECTION ON "INSTALLING"

> 465119 - REMOVING AND INSTALLING FRONT PCCB BRAKE DISC - SECTION ON "INSTALLING"
Tighten screw for drive shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

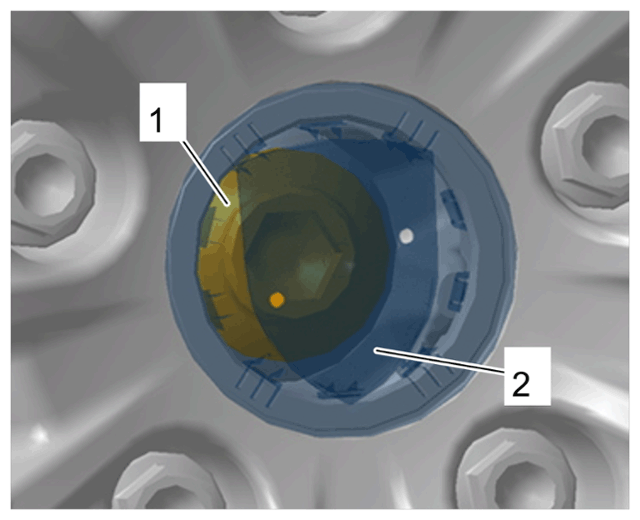

Drive shaft screw
1. 3.1 Raise the vehicle as far as required so that the wheel is not on the floor.
2. 3.2 Tighten screw for drive shaft -1- to the required initial tightening torque. Have another person press the brake when doing so.
  > Tightening - torque 200 Nm (148 ftlb.)
3. 3.3 Lower the vehicle.
4. 3.4 Tighten screw for drive shaft -1- . Have another person press the brake when doing so.
  > Torque angle 180°
5. 3.5 Fit hub cap -2- .
