Removing Front Drive Shaft

WARNING: This page is about a different variant/trim than selected.
  1. Change into neutral gear.
  2. R4 only:

    Remove heat protection panel at the right -1-  .

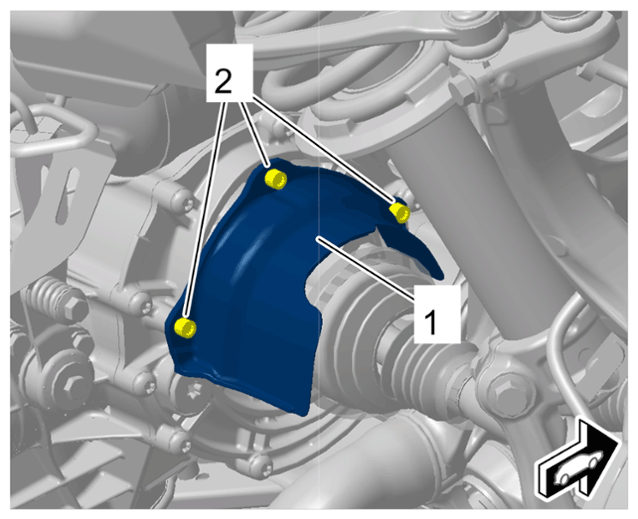

    G15154701Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right heat protection panel

    1. 2.1 Unscrew screws -2-  .
    2. 2.2 Remove the heat protection panel at the right -1-  .
  3. Remove drive shaft -1-  .

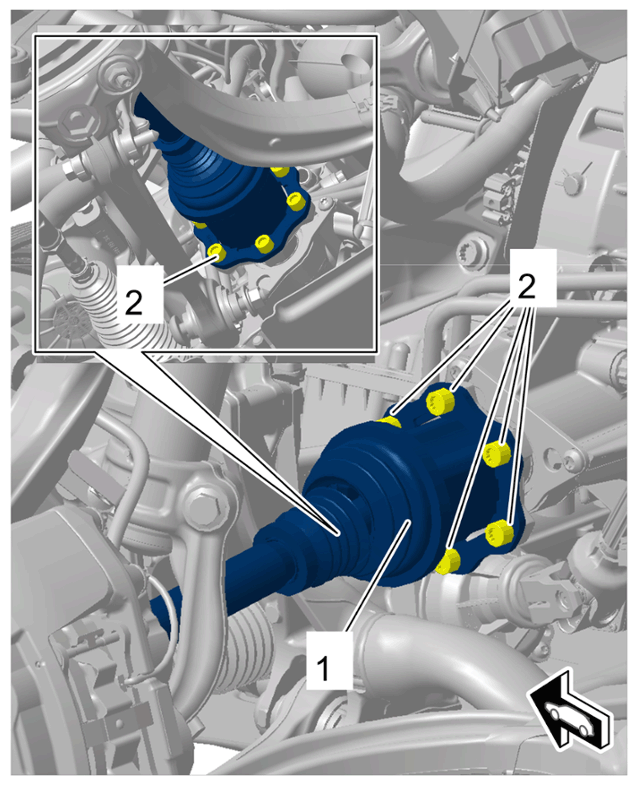

    G15154702Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft

    1. 3.1 Unscrew drive shaft screws -2-  .
    2. 3.2 Turn wheel bearing housing in until the drive shaft -1-  can be pulled out of the wheel bearing housing.
    3. 3.3 Remove drive shaft -1-  .
