Installing Front Drive Shaft

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

1.1 Grease splines with a little Optimoly TA aluminium paste and insert drive shaft. When doing this, press the inner joint together fully.
1.2 Replace drive shaft screws -2- .

1.3 Tighten drive shaft screws -2- .

> Initial - tightening 30 Nm (22 ftlb.)

> Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

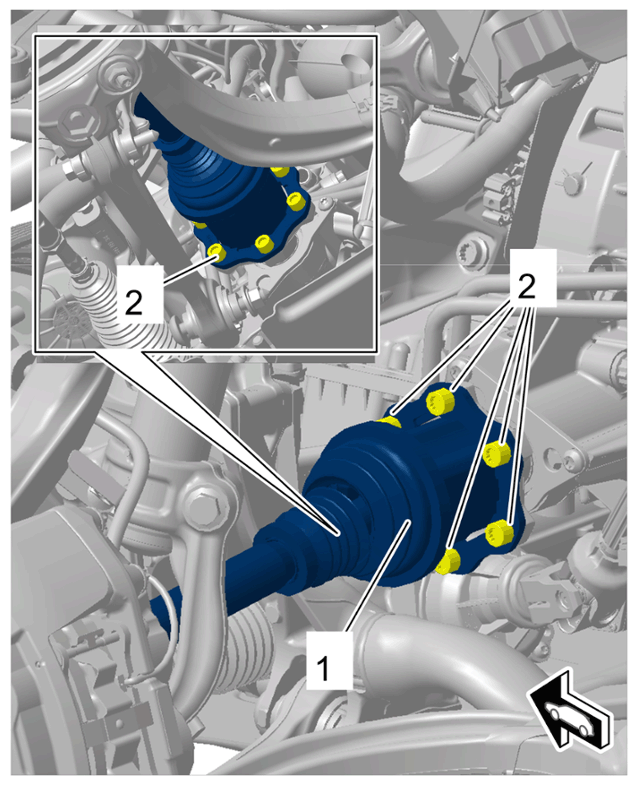

Drive shaft

1.4 Screw in the centre screw first in order to position the heat protection panel.

Tighten screws on heat protection panel at the right -2- .

> Tightening - torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

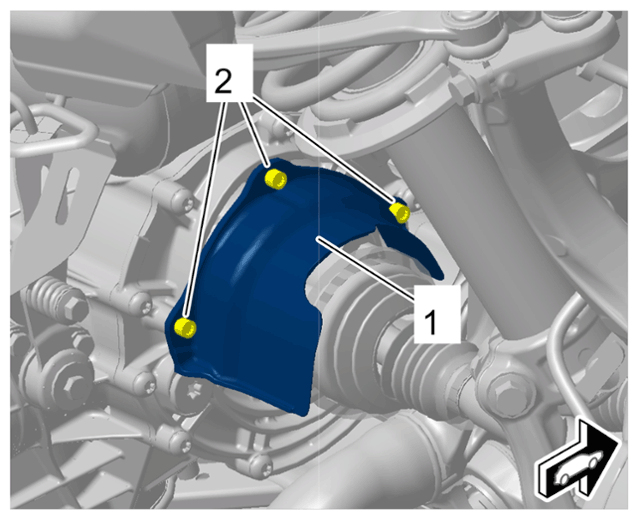

Heat protection panel
