Removing Lower Axle Joint
WARNING: This page is about a different variant/trim than selected.

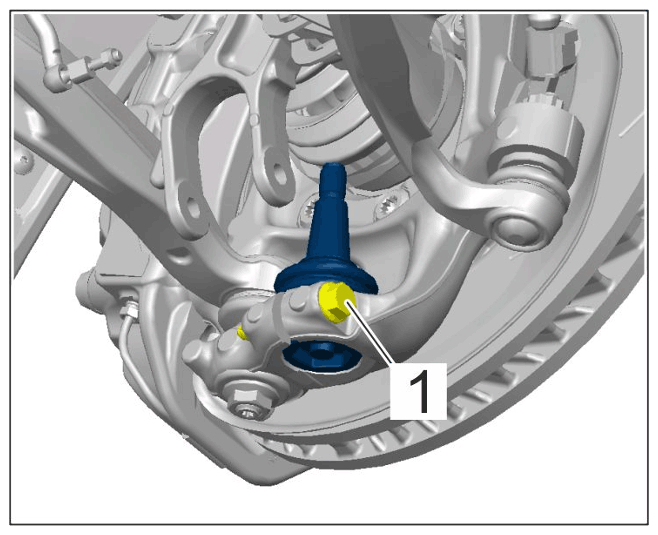

- Unscrew screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screw for lower axle joint

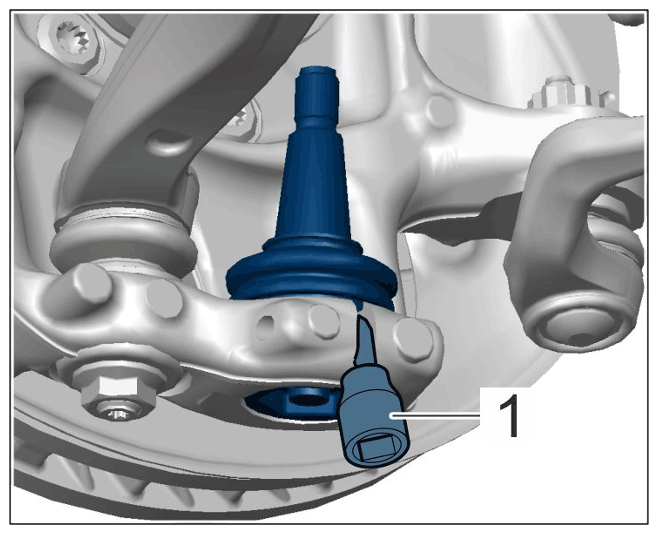

- > 3424 - Spreader-1-
must be inserted into the slot on the wheel bearing housing. Then, turn it 90 degrees.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Spreader 3424
- Remove lower axle joint from wheel bearing housing.
