Removing Lower Trailing Arm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

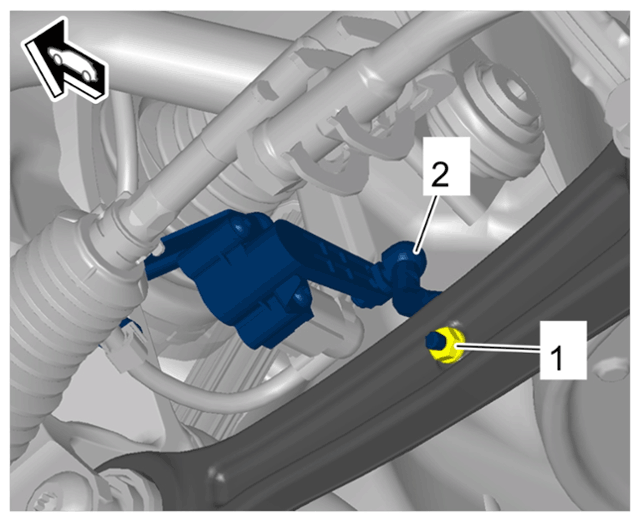

Front angle sensor for headlight beam adjustment on lower trailing arm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

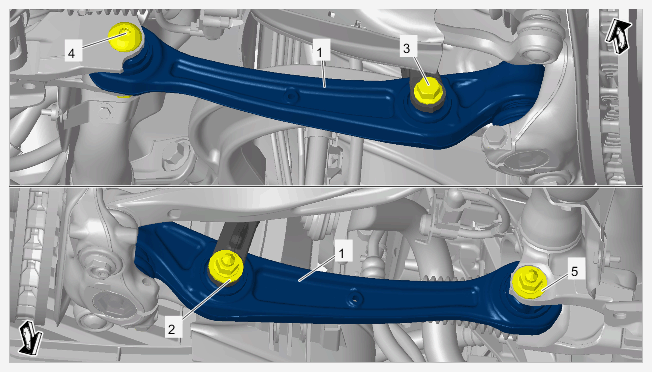

Lower trailing arm

1. 2.1 Loosen lower trailing arm -1-  from spring strut forks.
   1. 2.1.1 Counter at nut -2-  and unscrew and remove screw on spring strut fork -3-  .
2. 2.2 Loosen lower trailing arm -1-  from front-axle carrier.
   1. 2.2.1 Unscrew screw securing lower trailing arm to front-axle carrier -4-  and counter at nut -5-  at the same time.
   2. 2.2.2 Remove lower trailing arm -1-  from front-axle carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

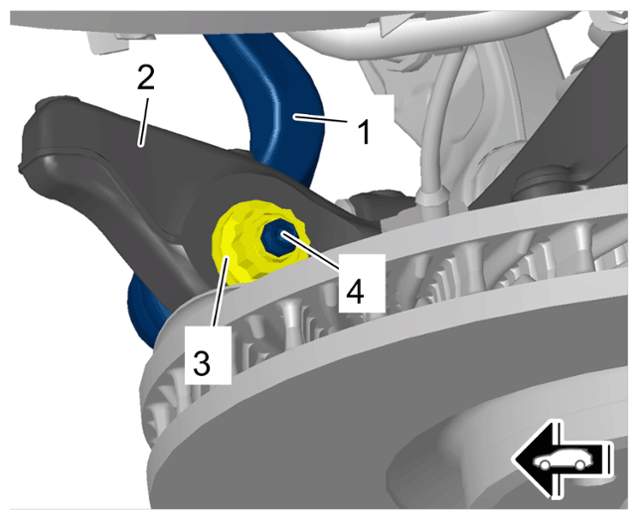

Tie-rod ball on wheel bearing housing

1. 3.1 Unscrew nut -3-  as far as required from joint pin for tie-rod ball -4-  until it is flush with the upper edge of the joint pin -4-  .
2. 3.2 Press off joint pin for tie-rod ball -4-  using > T40010A - ball joint puller  .
3. 3.3 Unscrew nut -3-  from joint pin for tie-rod ball -4-  , counter at the hexagon socket of the joint pin -4-  and remove tie-rod ball -1-  from the wheel bearing housing -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

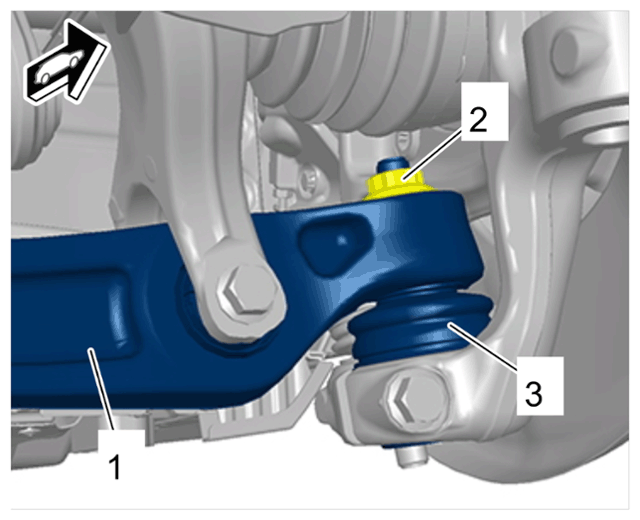

Lower trailing arm on wheel bearing housing

1. 4.1 Unscrew nut -2-  from joint pin for lower trailing arm as far as required until it is flush with the upper edge of the joint pin.
2. 4.2 Use > T40010A - ball joint puller  to press lower trailing arm off trailing arm joint -3-  .
3. 4.3 Unscrew nut -2-  from joint pin for lower trailing arm, counter at the hexagon socket of the joint pin and remove lower trailing arm -1-  from lower trailing arm joint -3-  .
4. 4.4 Remove lower trailing arm -1-  .
