Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance1 | Tolerance2 |
|---|---|---|---|---|---|

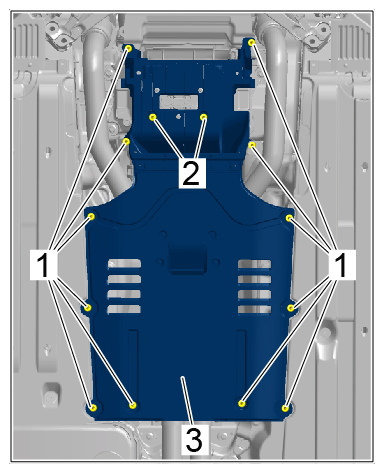

| Screws securing central cover for centre underbody to body | Item 1 | Tightening torque | 2.5 Nm (1.75 ftlb.) | ||
|
Central cover for centre underbody |
|||||
| Cross-strut to front axle carrier, rear - 1st stage | Item 21: Screw M12 x 42/replace | Initial tightening | 90 Nm (66.4 ftlb.) | ||
| Cross-strut to front axle carrier, rear - 2nd stage | Item 21: Screw M12 x 42/replace | Final tightening | + 135° | ||
| Cross-strut to front axle carrier, front - 1st stage | Item 22: Screw M12 x 51/replace | Initial tightening | 90 Nm (66.4 ftlb.) | ||
| Cross-strut to front axle carrier, front - 2nd stage | Item 22: Screw M12 x 51/replace | Final tightening | + 90° |
