Removing Front-Axle Carrier

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

    → Secure components to prevent them from falling down.

  1. Remove heat shields.

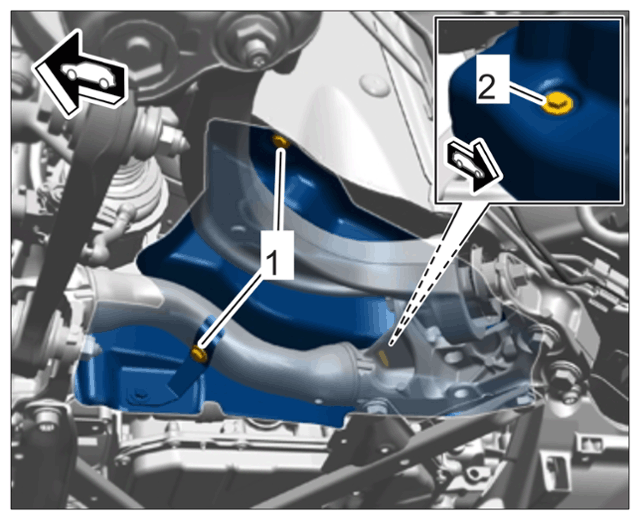

    G15154638Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on front-axle carrier

    1. 1.1 Remove screws -1 and 2-  .
    2. 1.2 Remove left and right heat shields.
  2. Loosen control arm -1-  from front-axle carrier.

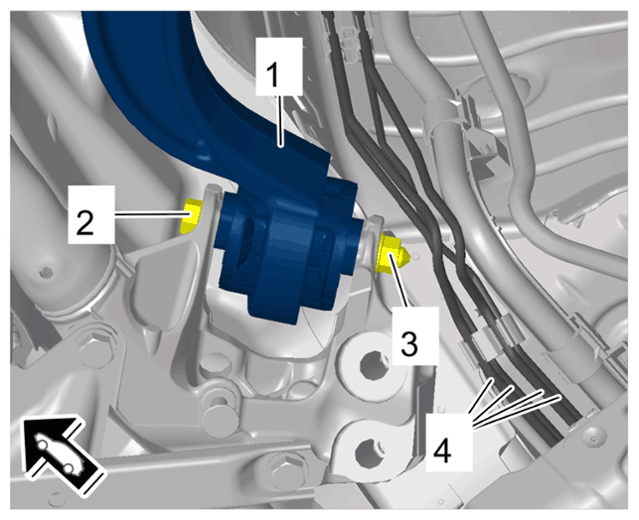

    G15154639Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control arm at front-axle carrier

    1. 2.1 Unscrew screw securing control arm to front-axle carrier -2-  , counter at the nut -3-  and make sure not to damage the brake lines -4-  .
    2. 2.2 Swivel control arm -1-  away from the front-axle carrier towards the wheel housing.
    3. 2.3 Secure control arm -1-  at a suitable position using welding wire, for example.
  3. Remove struts -1-  on both sides of the vehicle.

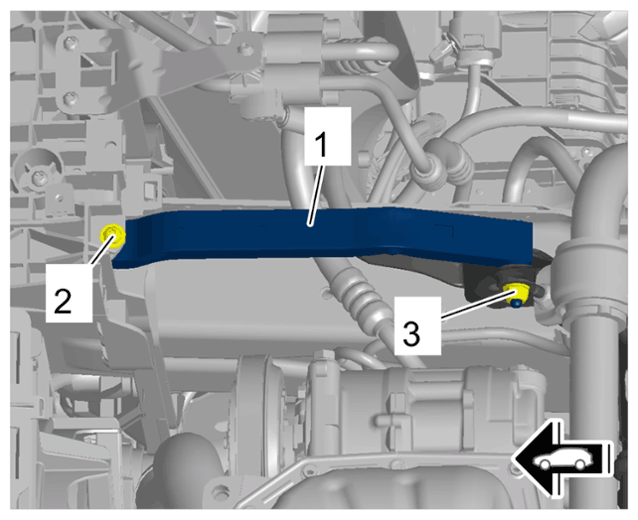

    G15154640Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut

    1. 3.1 Unscrew screw for strut -2-  .
    2. 3.2 Unscrew nut on strut -3-  .
    3. 3.3 Guide threaded bolt of strut -1-  out of the front-axle carrier and remove strut -1-  .

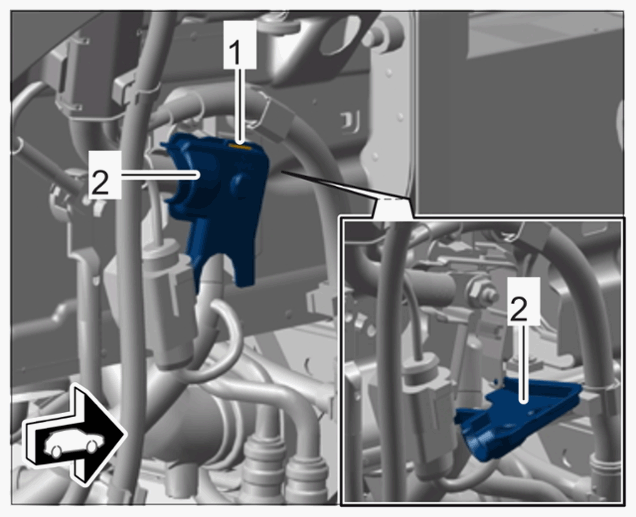

  4. Open locking lug -1-  with a screwdriver, open housing cover -2-  on the right longitudinal member and remove it.
    G15154641Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Housing cover

  5. Disconnect electric lines on the right longitudinal member.

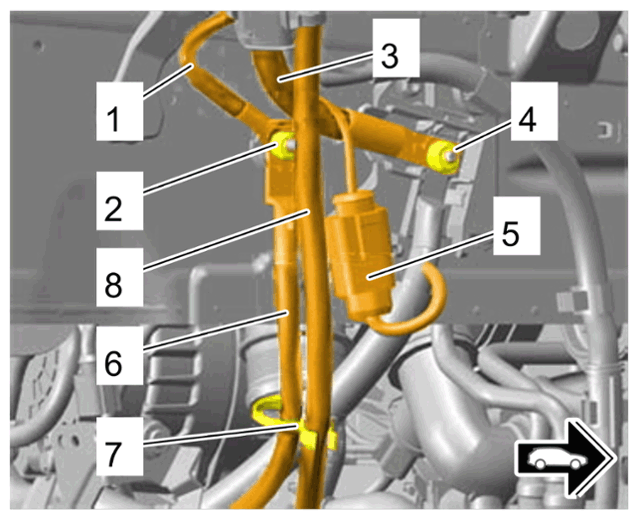

    G15154642Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on right longitudinal member

    1. 5.1 Unclip headlight vent line -8-  at the clip -7-  and set it aside.
    2. 5.2 Unscrew fastening nut -2-  and move ground lines -1 to 6-  aside.
    3. 5.3 Disconnect electric plug connection -5-  and pull it out of the clip.
    4. 5.4 Unscrew fastening nut -4-  , remove ground line -3-  and set it aside.

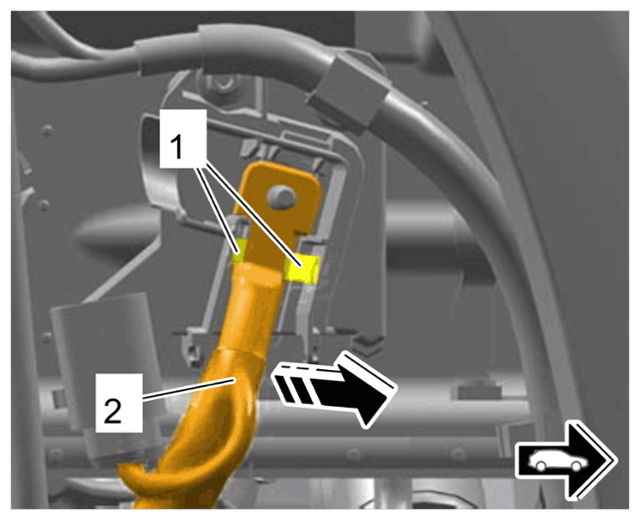

  6. Press in locking lugs -1-  , disconnect ground line -2-  by pulling it in -direction of arrow-  and set it aside.
    G15154643Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground line

  7. Disconnect electric wire harness -1-  from front-axle carrier.

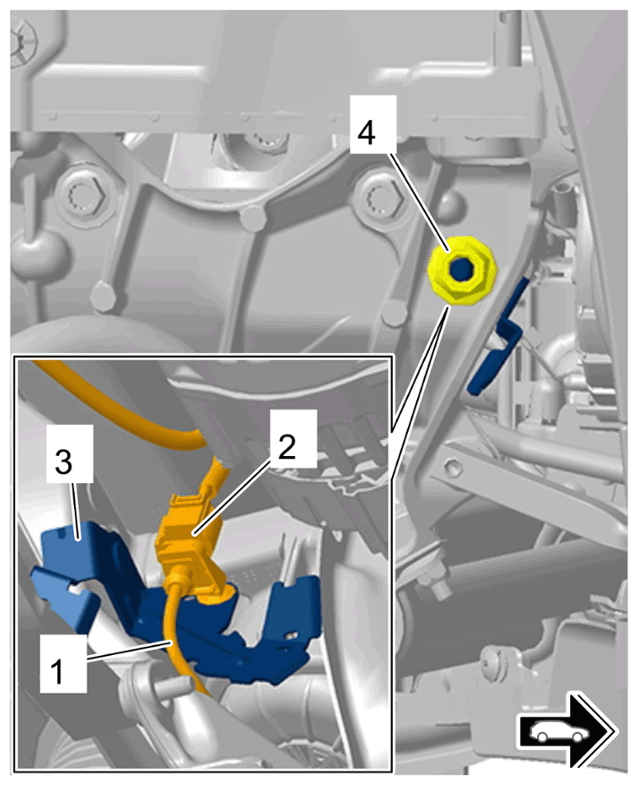

    G15154644Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness on front-axle carrier

    1. 7.1 Unclip electric plug connection for engine mount -2-  from line bracket -3-  .
    2. 7.2 Unscrew nut on line bracket -4-  .
    3. 7.3 Remove line bracket -3-  from front-axle carrier.
    4. 7.4 Set electric wire harness -1-  aside.
  8. Loosen engine mount -1-  .

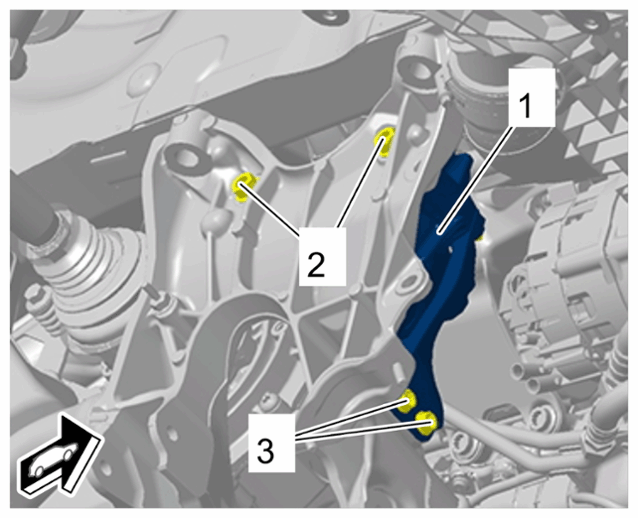

    G15154645Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Engine mount screws

    1. 8.1 Unscrew screws on engine mount -2 and 3-  .
  9. Prepare unit elevating platform > VAS 6832 - Master Gear unit elevating platform  with the assembly fixture > VAS 6832/5 - Assembly fixture - Macan  .
  10. Raise the elevating platform and guide front locating pins -1-  into the jacking points on the body provided for this purpose.

    Locating pins are only for guiding the assembly fixture and must not be fitted.

    Only for V6 biturbo engines:  Do not use locating pin at the front left in direction of travel (due to accessibility of jacking point).

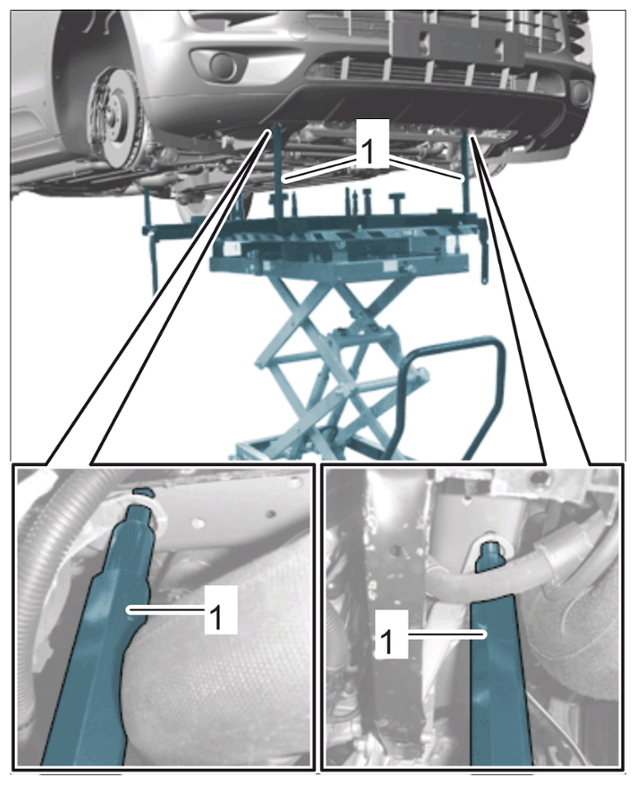

    G15154646Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lifting platform locating pins, front

  11. Guide rear assembly driver -1-  into the jacking points provided for this purpose on the body.

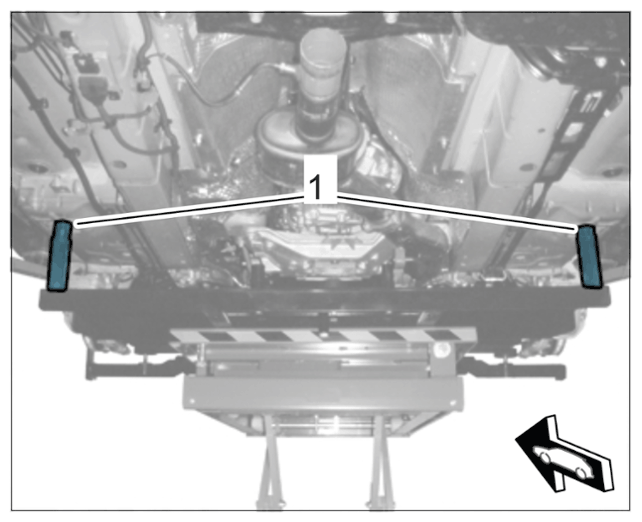

    G15154647Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear assembly driver

  12. Remove front-axle carrier -9-  .

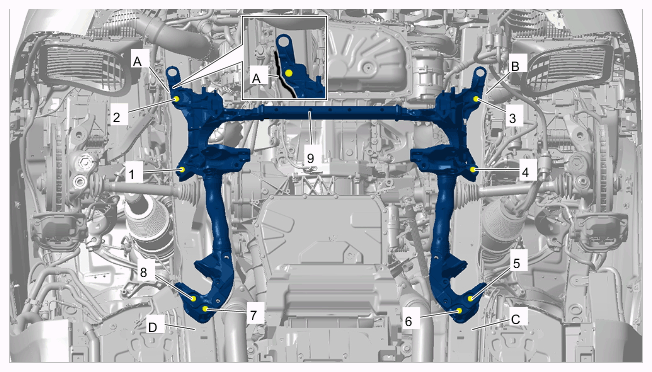

    Fig 1: Front-Axle Carrier Screws Screws Loosening Sequence
    G15154648Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on front-axle carrier

    1. 12.1 Mark installation position of front-axle carrier -9-  at the positions -A to D-  using a felt-tip pen.
    2. 12.2 Unscrew screws on front-axle carrier -1 to 8-  .
    3. 12.3 Lower the front-axle carrier -9-  on > VAS 6832 - Master Gear unit elevating platform  .
