Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing armrest to load-through provision Item 2 Tightening torque 4.5 Nm (3.25 ftlb.)

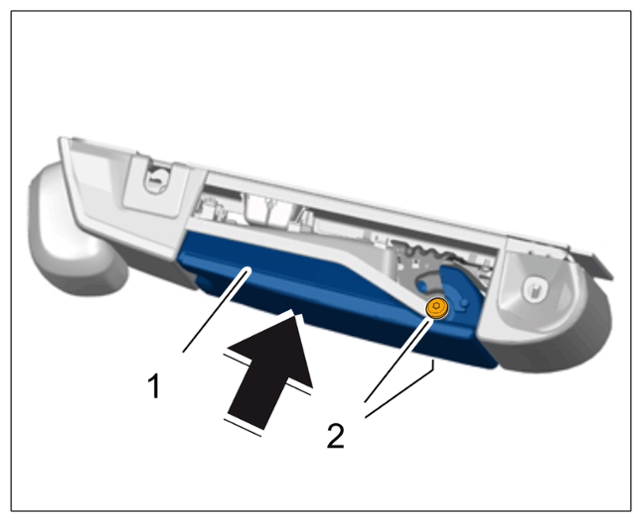

G15161821Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Armrest with cover
