Securing Cover For Rear Backrest

Information

• Always replace metal cushion clips.
• Reuse plastic cushion clips. Replace defective cushion clips.

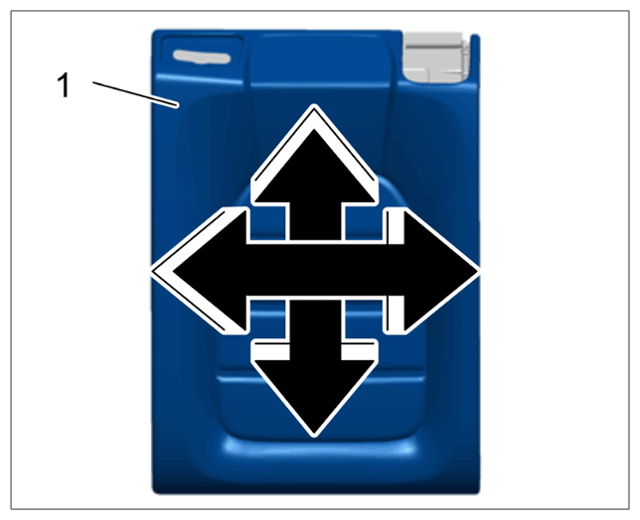

1. Align cover -1-  over the padding for the rear backrest -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

2. Only for vehicles with heated seats:  Connect electric plug connection for heated seats.
3. Fasten cushion clips.

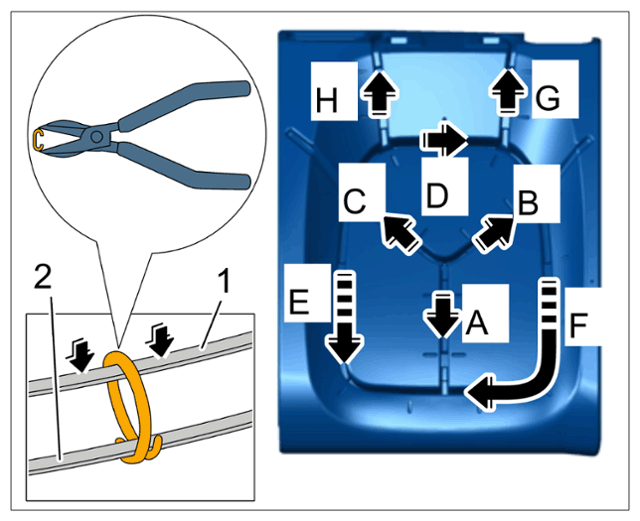

Secure the metal struts in the cover -1-  using > Nr.130 - cushion clip pliers  in the sequence shown (-Arrow A to arrow I-  ) to the metal struts of the padding -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cushion clips
