Removing Regulator For Rear Heated Seats

1. Remove storage compartment -1-  with regulator for rear heated seats -2-  from covering frame for centre console -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

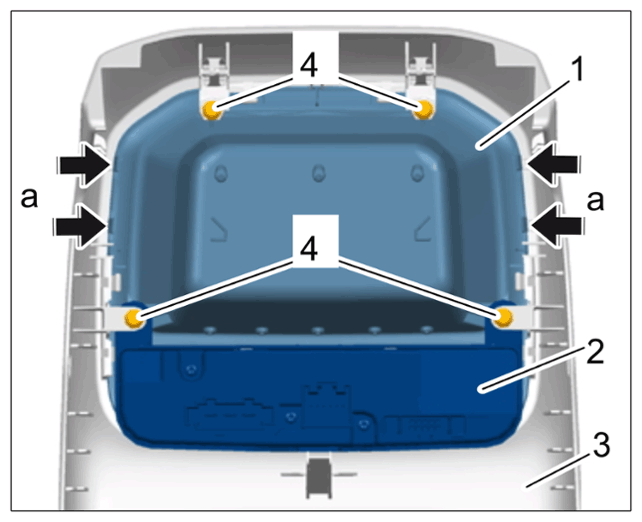

   Storage compartment with regulator for rear seat heating

   1. 1.1 Remove fastening screws -4-  .
   2. 1.2 Disengage side locking mechanisms -a-  and remove storage compartment with regulator for rear heated seats from covering frame for centre console.
2. Carefully disengage locking mechanisms -1-  at the top and bottom of the storage compartment -2-  and pull regulator for rear heated seats -3-  out of the storage compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

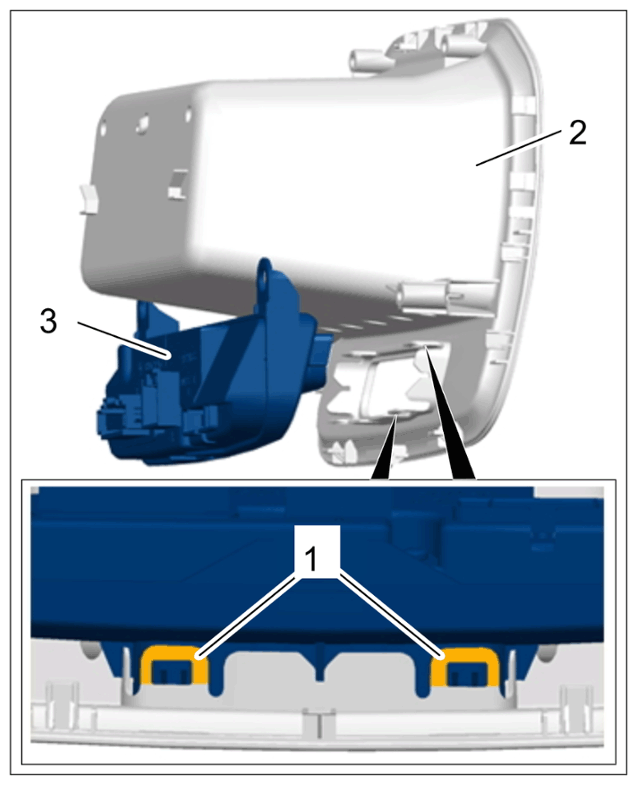

Regulator for rear seat heating
