Securing Padding For Front Backrest

1. Place cover for front backrest on padding for front backrest and align contour of padding for front backrest.
2. Use > Nr.130 - cushion clip pliers  and new cushion clips to secure cover for front backrest on padding for front backrest in the specified sequence.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

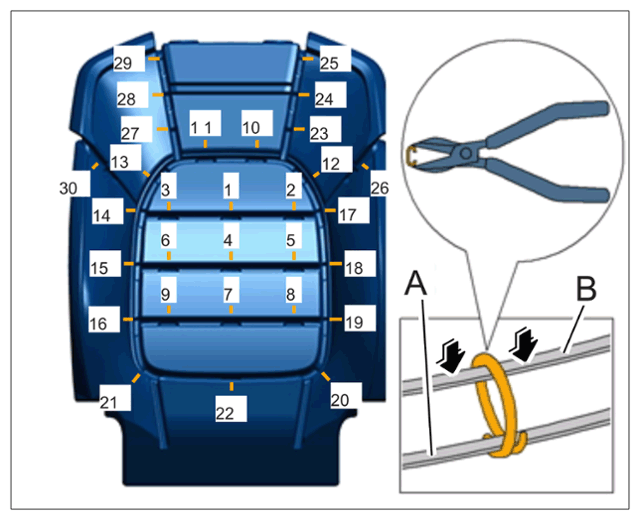

Cover for front backrest (basic/Comfort)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

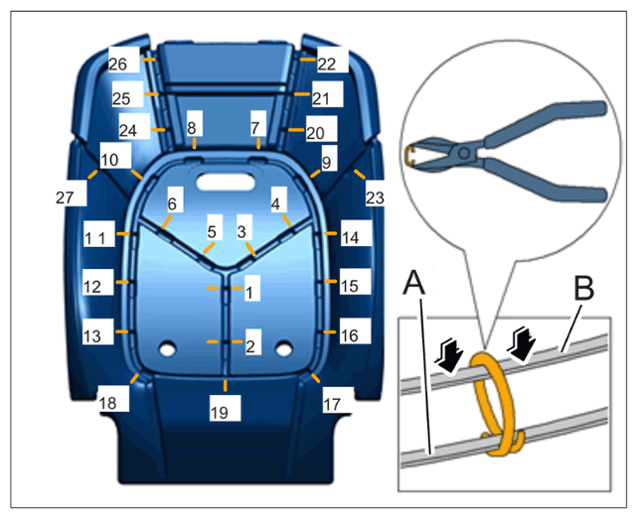

Cover on padding for front backrest (Sport)
