Removing Suction Fan For Backrest Surface

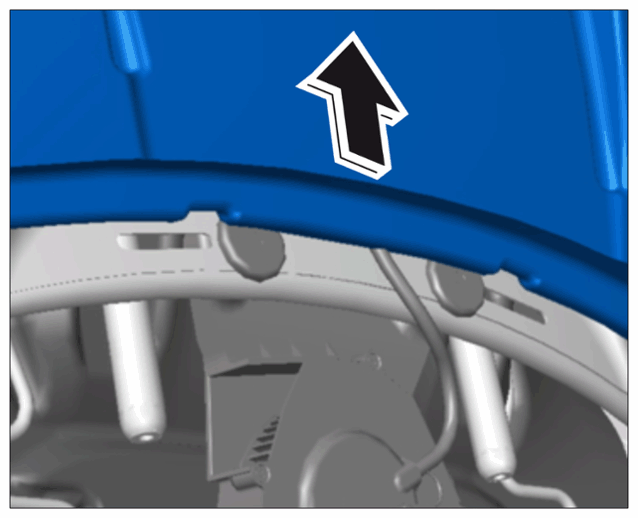

1. Detach front backrest cover at the rear in the top area -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front backrest cover

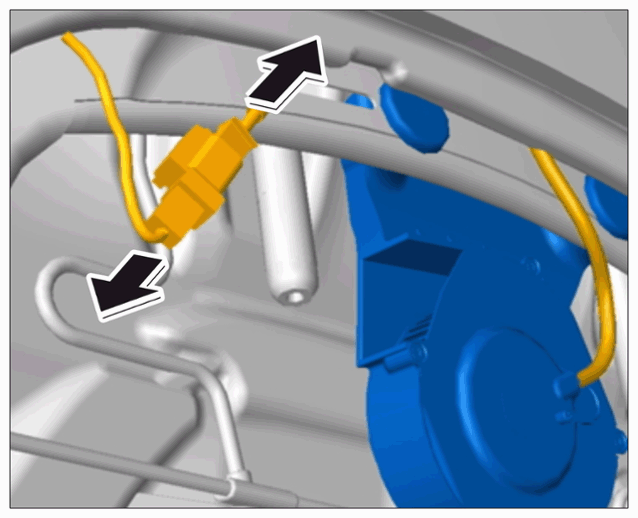

2. Release and disconnect electric plug connection for suction fan for backrest surface -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

3. Loosen suction fan for backrest surface.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

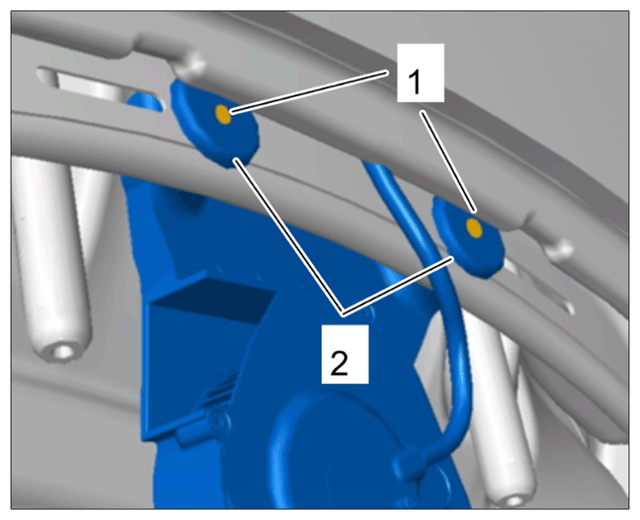

   Expansion rivets

   1. 3.1 Press plastic pins -1-  through expansion rivets -2-  .
   2. 3.2 Remove expansion rivets -2-  by pulling them towards the rear.

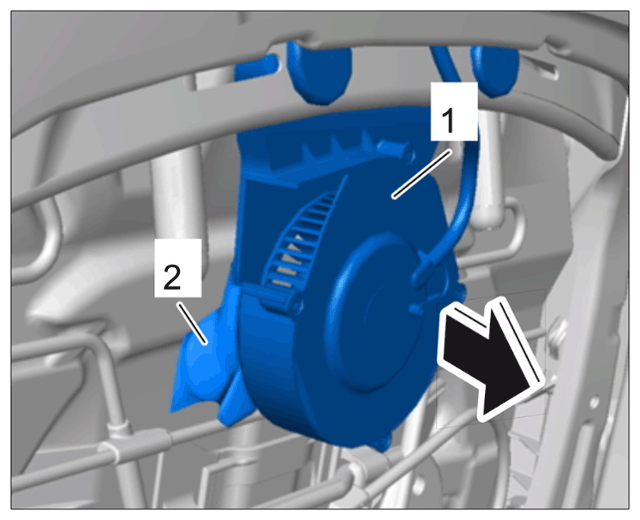

4. Pull suction fan for backrest surface -1-  out of the rubber flange -2-  and remove it by pulling it to the rear -Arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Suction fan for backrest surface
