Removing Suction Fan For Seat Surface

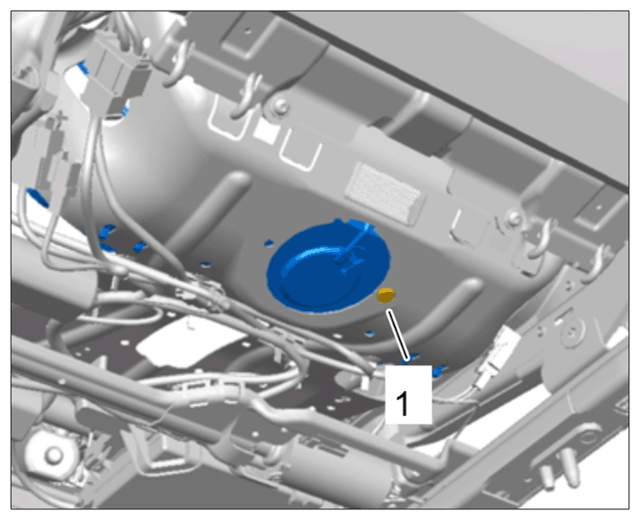

1. Remove expansion rivet -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Expansion rivet

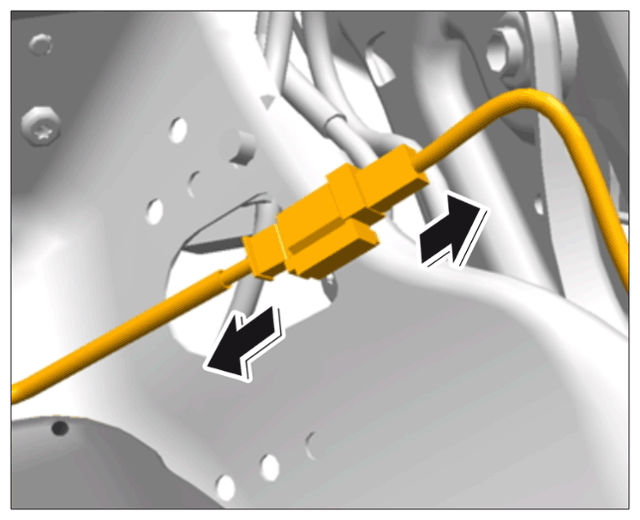

2. Release and disconnect electric plug connection for seat surface suction fan -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

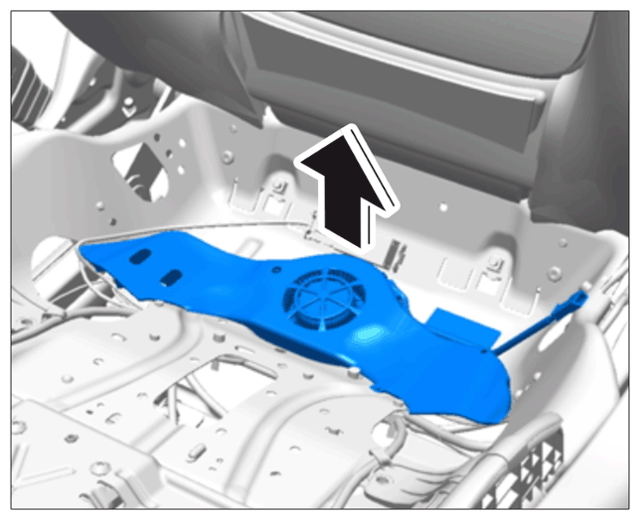

3. Unclip seat surface suction fan together with the bracket and remove it by pulling it upwards -Arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat-surface suction fan
