Removing C-Pillar Cover

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

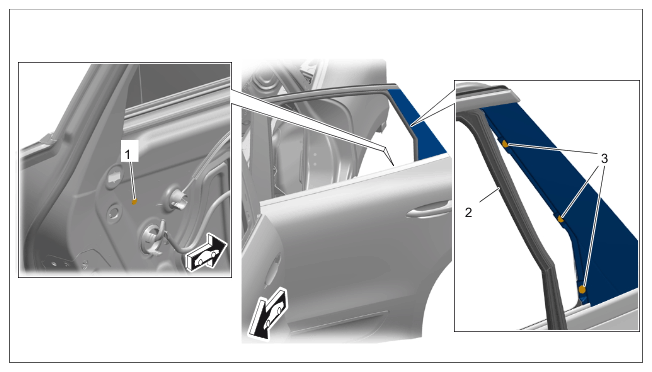

1. Detach C-pillar cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

   1. 1.1  Unscrew screw -1-  .
   2. 1.2  Loosen rubber seal -2-  from C-pillar cover.
   3. 1.3  Unscrew screws -3-  .

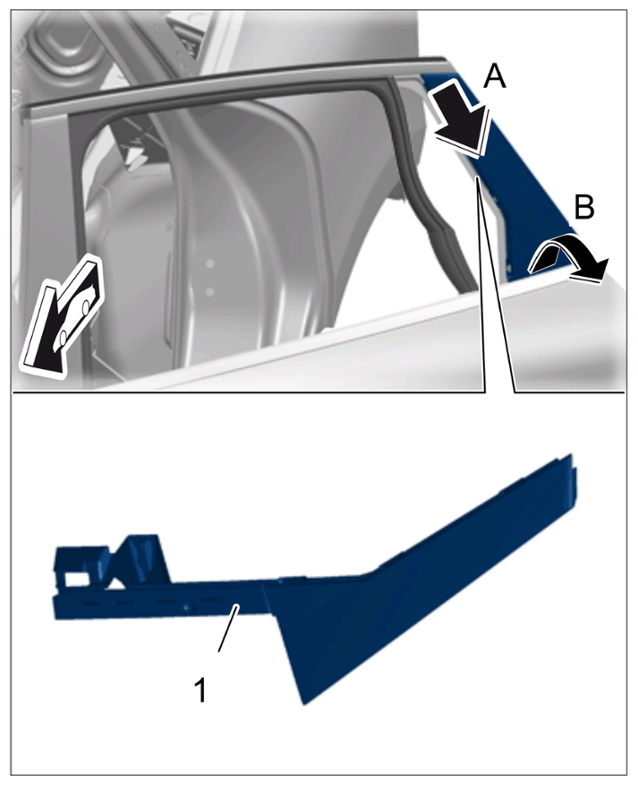

2. Slide the cover -1-  down slightly -arrow A-  , detach it from the door and guide it up and out -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   C-pillar cover
