Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Nut securing roof rail to roof Item 1 to 5 Tightening torque 10 Nm (7.5 ftlb.)

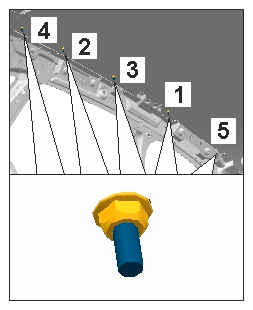

G15160487Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof rail nuts
