Installing Roof Rails

Information

Removal and installation can be considerably easier with the help of another person.

1. Fit roof rails on the roof using the front bolt.
2. Position roof rails fully.
3. Fit nuts.
4. Tighten nuts in the sequence shown -1 to 5-  to > Tightening - torque 10 Nm (7.5 ftlb.)  .

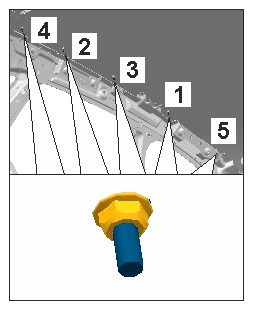

   Fig 1: Roof Rail Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Roof rail screws
