Removing Number Plate Cover

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove number plate cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

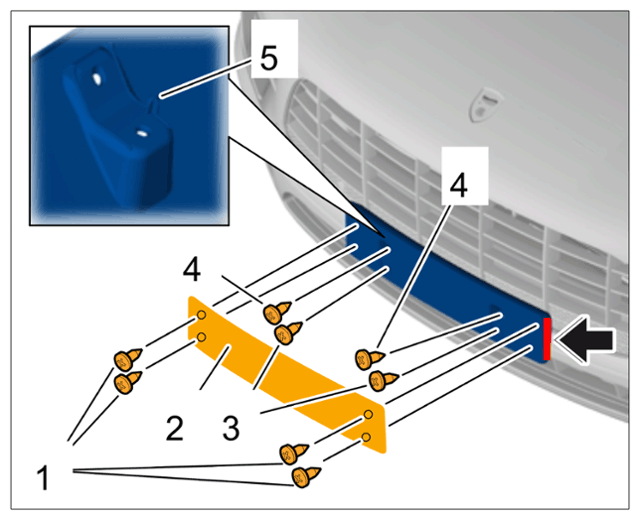

   Number plate

   1. 1.1  Unscrew screws -1-  and remove number plate -2-  .
   2. 1.2  Remove screws -3 and 4-  and remove number plate cover.
