Installing Number Plate Cover

Information

Self-tapping screws are used to secure the number plate cover. When fitting the number plate cover for the first time (e.g. on a new front apron), the screws can be screwed directly into the front apron. There is no need to drill any holes.

1. Installation is performed in reverse order. Pay particular attention to the following:

   Centre the number plate cover -2-  , making sure that the side contour is positioned correctly.

   Tighten screws on number plate cover -1-  to > Tightening - torque 2.5 Nm (1.75 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

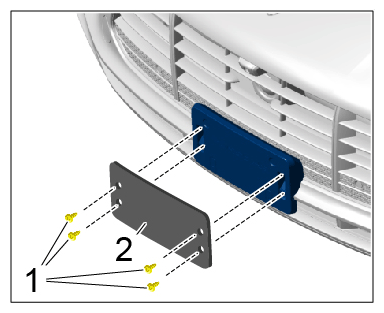

   Number plate cover

   Tighten screws on number plate -1-  to > Tightening - torque 2.5 Nm (1.75 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

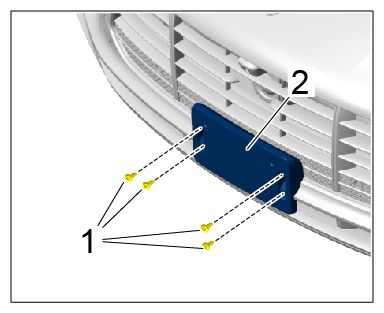

   Number plate
