Removing Mirror Base Cover

  1. Unclip too cover -1-  by pulling it upwards.
    G15160442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Top cover

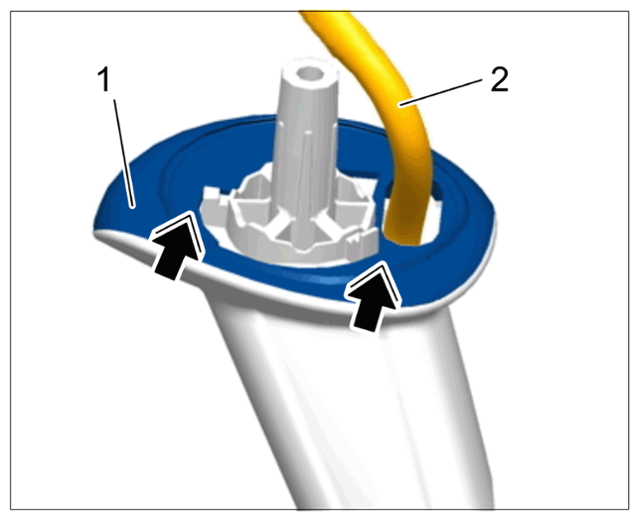

  2. Guide out wire harness -2-  on top cover -1-  and remove top cover -1-(-Arrows-)  .
    G15160443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Top cover

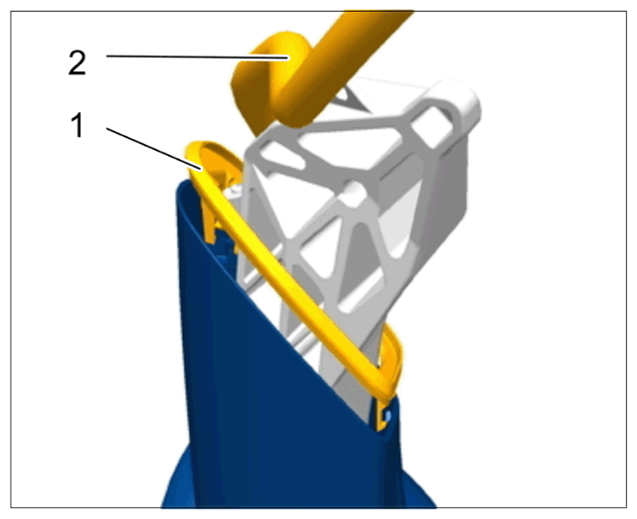

  3. Unclip lower seal -1-  on the mirror base cover, guide out wire harness -2-  and remove lower seal -1-  .
    G15160444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower seal

  4. Unscrew bottom screw -1-  .
    G15160445Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mirror base cover

  5. Unscrew top screw -2-  .
    G15160446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mirror base cover

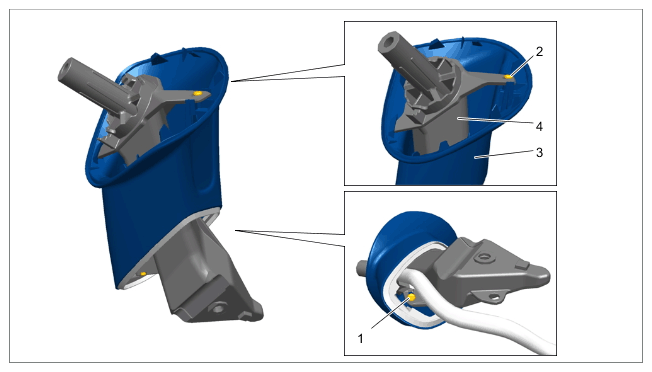

  6. Remove mirror base cover -3-  from the mirror base -4-  .
    G15160447Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mirror base cover
