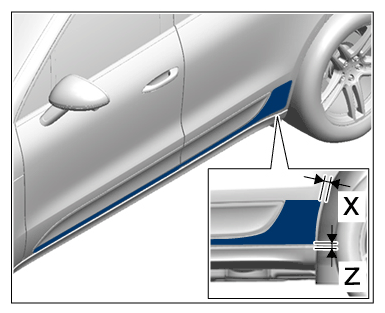

| Gap dimension from outer edge of film to radial run-out line |
|
Gap dimension X |
2 mm |
+/- 1 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Stone guard film |
|
|
|
|
|
| Gap dimension from lower edge of film to upper edge of stone guard film |
|
Gap dimension Z |
2 mm |
+/- 1 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Stone guard film |
|
|
|
|
|
