Removing Switch For Trailer Hitch

  1. Release and pull off electric plug connection -1- (-arrows-)  .

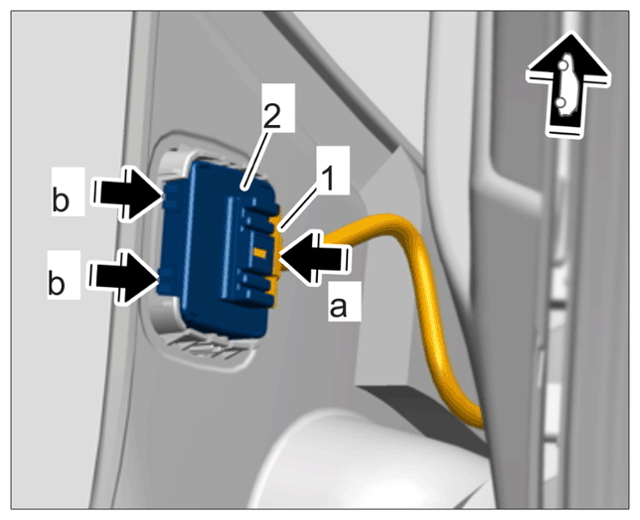

    G15160401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch for trailer hitch

  2. Press the locks -arrow b-  and push switch for trailer hitch -2-  out of the retaining frame.
    G15160402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch for trailer hitch
