Removing Rear Spoiler

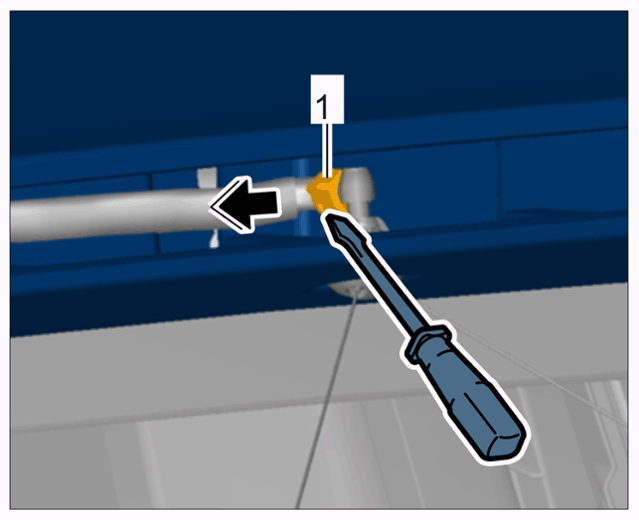

  1. Release washer fluid line spray nozzle -1-  using a screwdriver and pull it off.
    G15160390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Washer fluid line

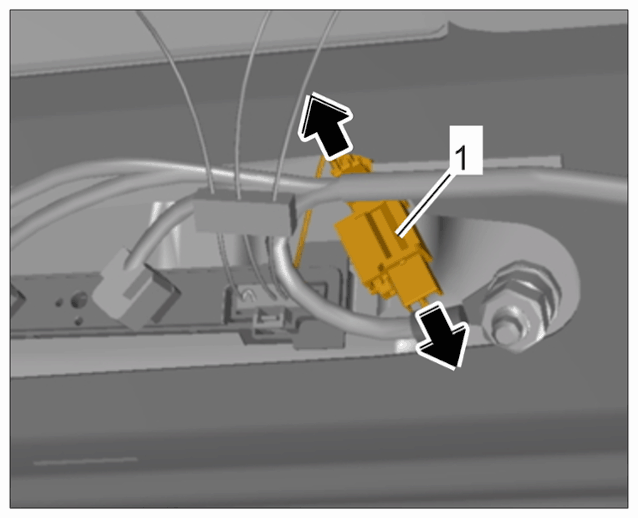

  2. Release electric plug connection for antenna cable -1-  and disconnect it -Arrow-  .
    G15160391Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for antenna cable

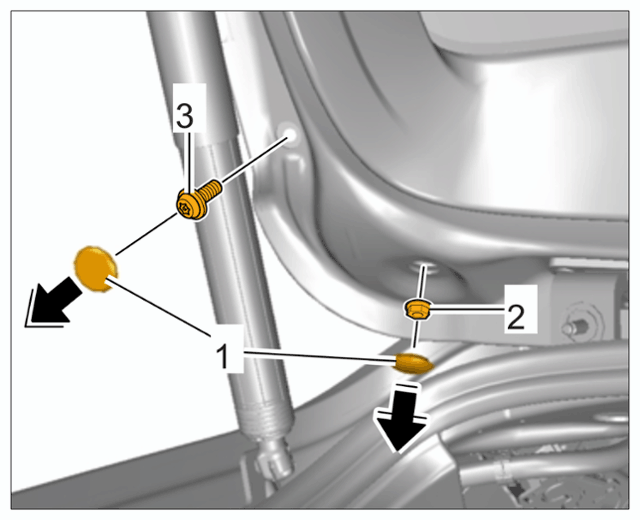

  3. Loosen rear spoiler.
    1. 3.1  Remove caps -1-  .
    2. 3.2  Screw off nut -2-  .
    3. 3.3  Unscrew screw -3-  .
    G15160392Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear spoiler

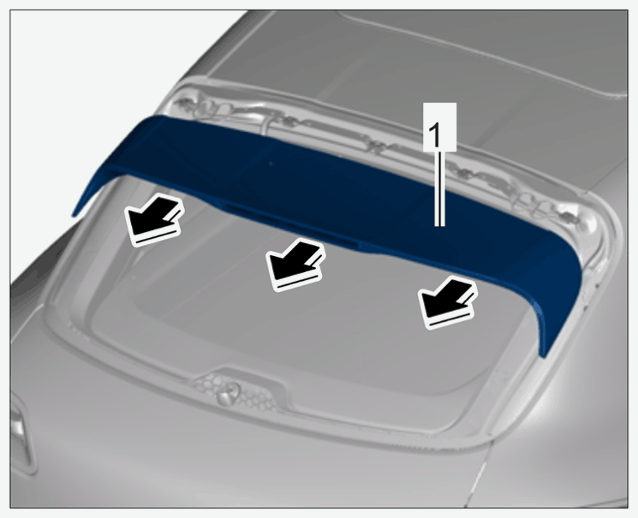

  4. Carefully unclip rear spoiler -1-  from the bracket by pulling it to the rear -arrow-  .
    G15160393Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear spoiler

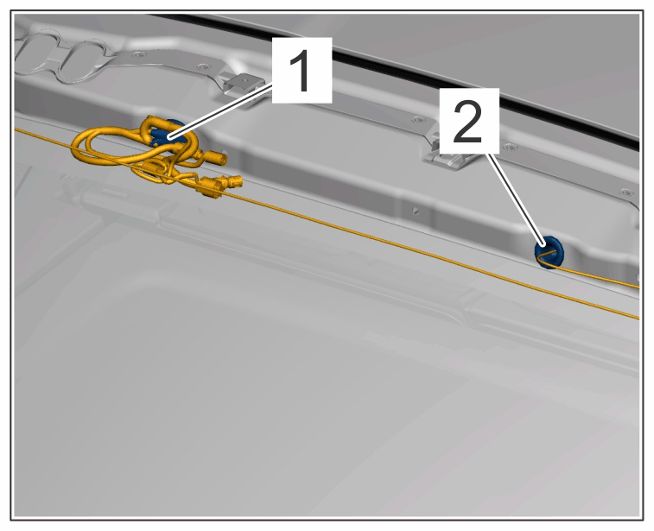

  5. Pull out wiring harness bushing -1-  and washer fluid line bushing -2-  .
    G15160394Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable bushing

  6. Remove rear spoiler.
