Removing Rear Logo (Tail Light)

Information

Logos cannot be re-used.

Information

Pry off logos carefully so as not to damage the paintwork.

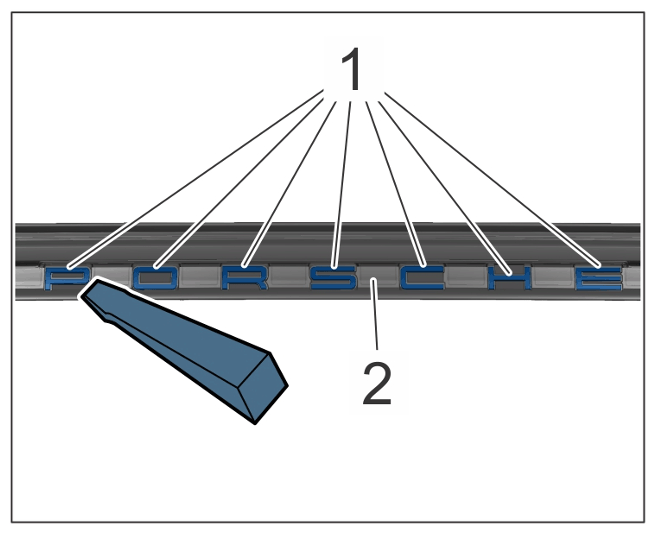

  1. Carefully pry the logo -1-  off the tail light -2-  using a plastic wedge.
    G15160371Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear logo (tail light)

  2. Remove adhesive residue from the rear logo (tail light) area using silicone remover.
