Installing Rear Logo (Tail Light)

Information

• Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropanol.
• Always use a clean cloth.
• The room and object temperature must be at least > Nominal value+ 15°C  .
• Air humidity must be  > Nominal value 50 % +/-10 %  .
• Do not touch the bonding surface again after removing the protective paper.
• Wear clean gloves during the bonding process in order to guarantee adequate adhesion.
• The parts must have been bonded for at least  > Nominal value 72 h before - washing the vehicle in a car wash.

1. Remove protective paper from the rear logo.

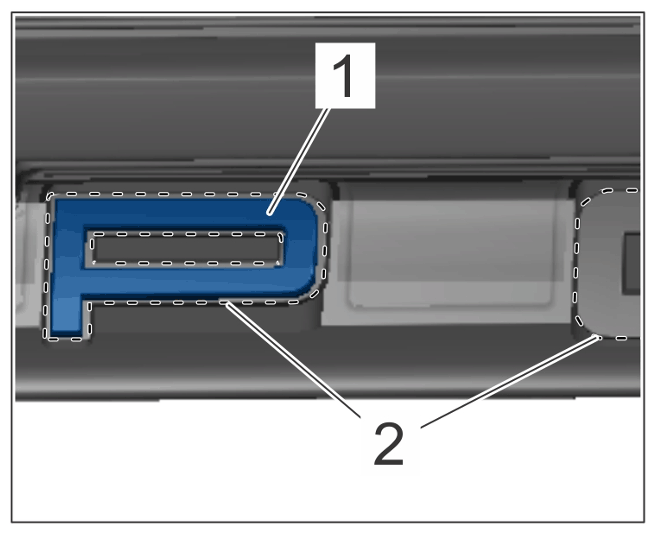

2. Align rear logo (tail light) -1-  with the contour -2-  and press it on firmly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear logo (tail light)
