Replacing Rear Logo: Notes

Information

Logos cannot be re-used.

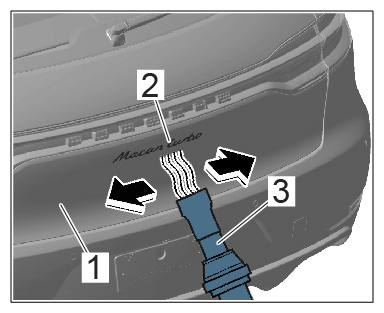

1. Heat the rear lid -1-  in the area around the rear logo -2-  using > V. A. G 1416 - hot-air blower -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Area around rear logo

   Information

   Pry off logos carefully so as not to damage the paintwork.

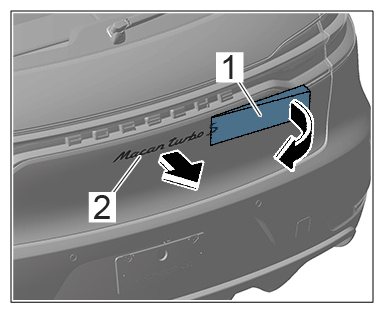

2. Use a plastic spatula -1-  to pry off the rear logo -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear logo

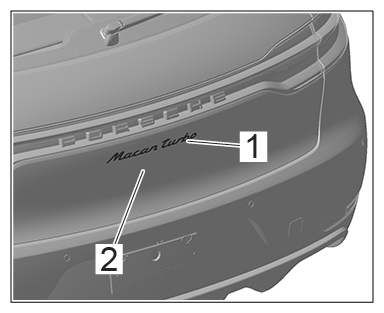

3. Remove adhesive residue -1-  from the rear logo area -2-  using silicone remover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adhesive residue
