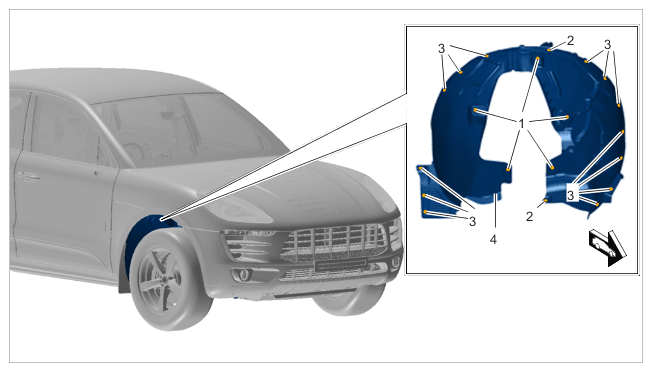

| Screw securing front wheel housing liner to body |
Item 3 |
Tightening torque |
2 Nm (1.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front wheel housing liner, right |
|
|
|
|
|

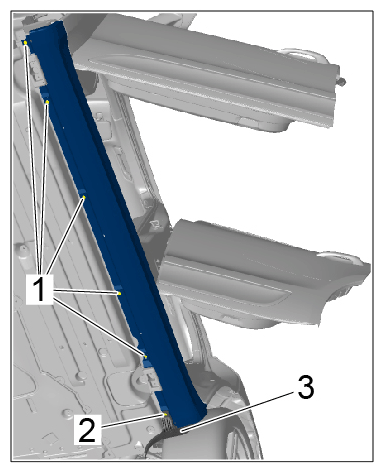

| Screws securing door entry guard to body |
Item 1 and 2 |
Tightening torque |
2.5 Nm (1.75 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door entry guard |
|
|
|
|
|
