Removing Sill Cover

  1. Unscrew and remove screws -1-  .
    G15160348Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Door entry guard

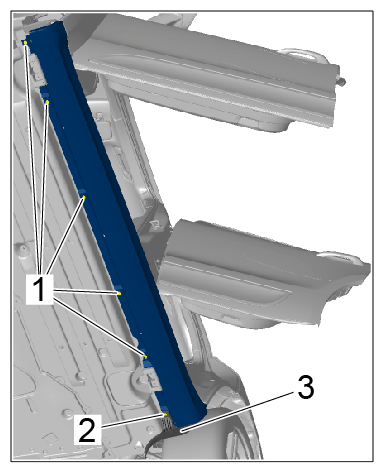

  2. Unscrew screw -2-  and loosen air deflector -3-  .
    G15160349Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air deflector

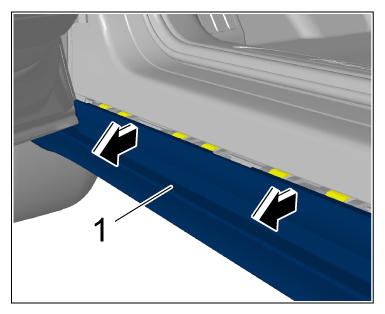

  3. Unclip door entry guard -1-  , starting from the front -Arrows-  .
    G15160350Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Door entry guard

    Information

    Cover add-on parts and adjacent areas.

    Protect components against scratching and damage.

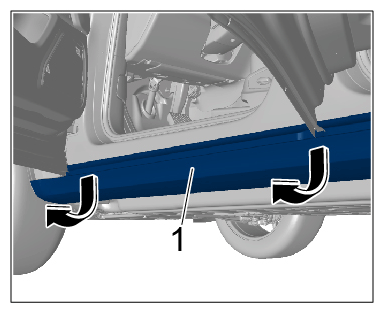

  4. Guide door entry guard -1-  out of the door gap at the front and rear -Arrows-  .
    G15160351Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Door entry guard at door gap at front and rear
